Custom Social Login with Microsoft

Warning

Having issues with making Microsoft social authentication work? Please refer to this guide on social providers with unverified emails.

When integrating Descope flows in a website, often you'll want to allow Social Login with Microsoft as one of the authentication methods for your users. You'll need to create a Microsoft enterprise application and integrate it with Descope. This doc will walk you through all the steps to do that.

Note

This guide is specifically for Microsoft Social Login

Current Default Login Page

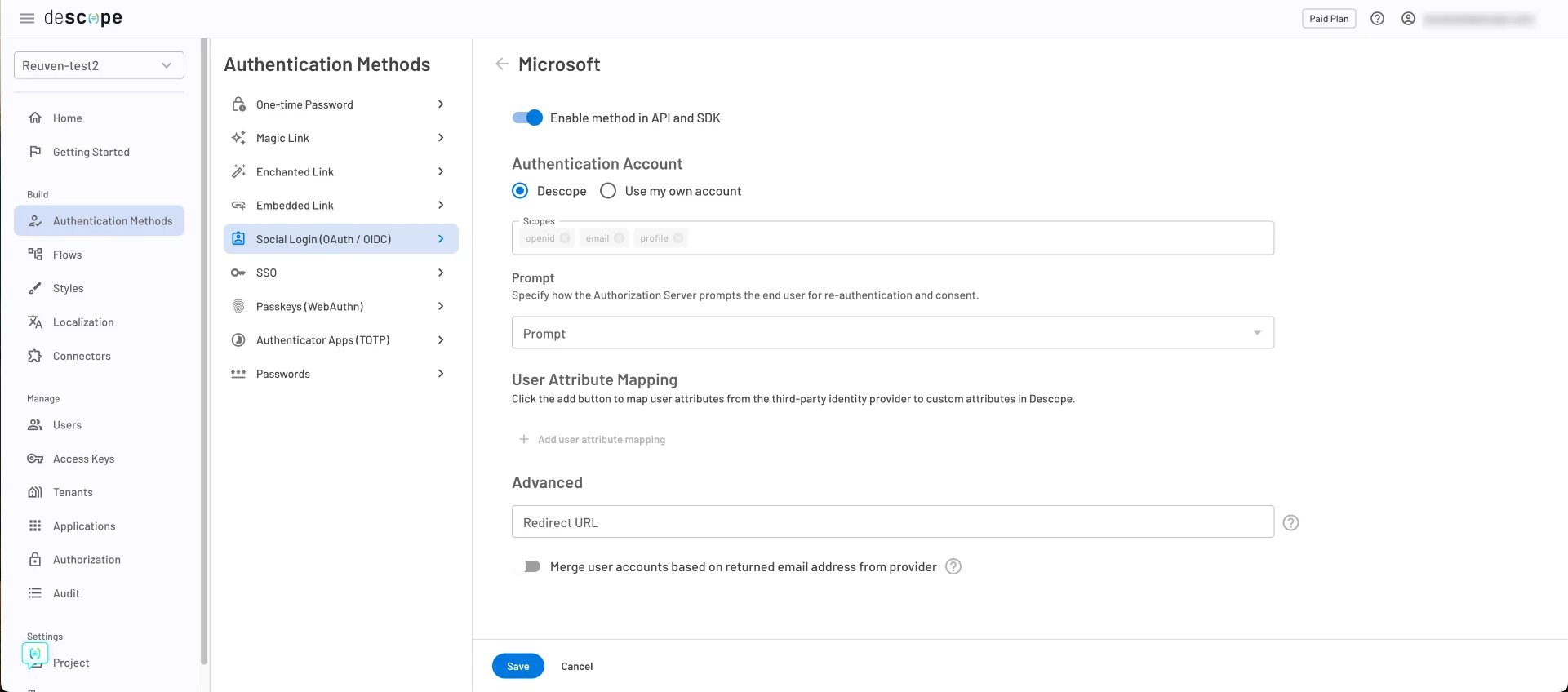

The default Descope login app looks like this (Click on Microsoft):

Descope custom social login with Microsoft, customize Microsoft OAuth

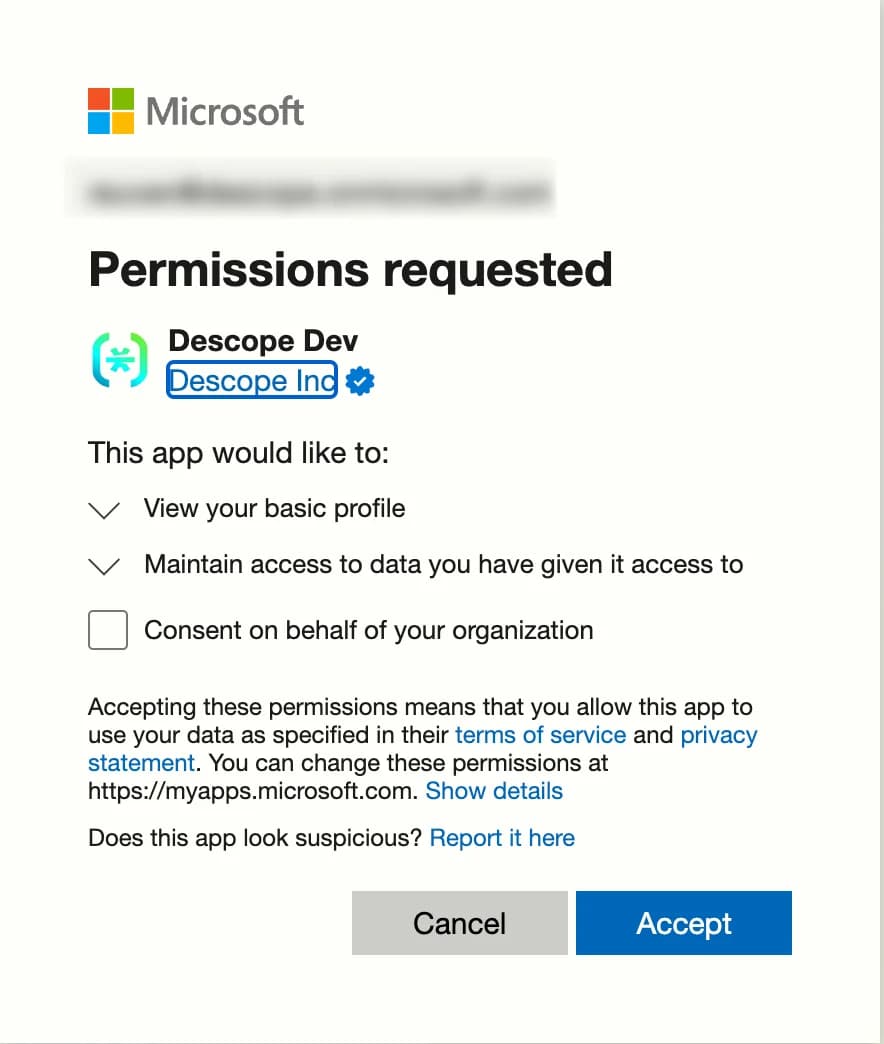

However, if you use the Descope login app, the sign in page will default to show Sign in to continue to Descope.

Descope custom social login with microsoft, Descope signin example

Instead of displaying Descope and our logo, this guide will show you how to personalize your Microsoft Sign-In Page to display your own company logo and domain instead.

Solution

To make this happen, you'll need to configure a few things on the Microsoft side and the Descope side, as well as configure a new CNAME in your domain's DNS records.

Configuring the CNAME

You will need to create a custom domain that points to cname.descope.com (US) / CNAME.euc1.descope.com (EU), so that if the redirect URI is auth.example.com for instance, the Microsoft page will show Sign in to continue to with example.com instead of descope.com

See the Custom Domain guide for a step by step guide for managing sessions within cookies.

Once that is completed, you will need to create a new enterprise application in Azure.

Creating a new Enterpise Application

  1. Navigate to your Azure portal.

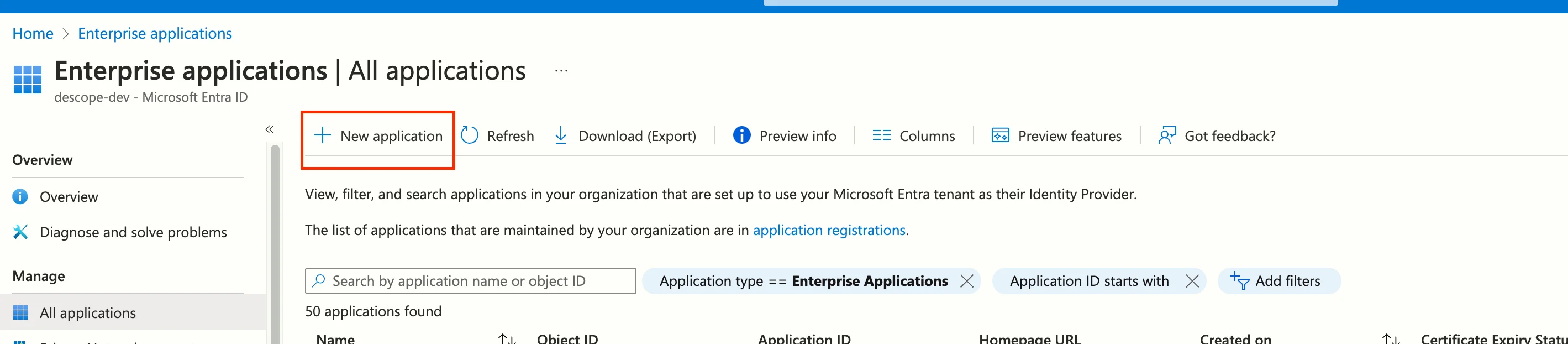

  2. Search For Enterprise Applications, and click on +New Application to start the process:

Descope custom social login with microsoft, creating microsoft enterprise application 1

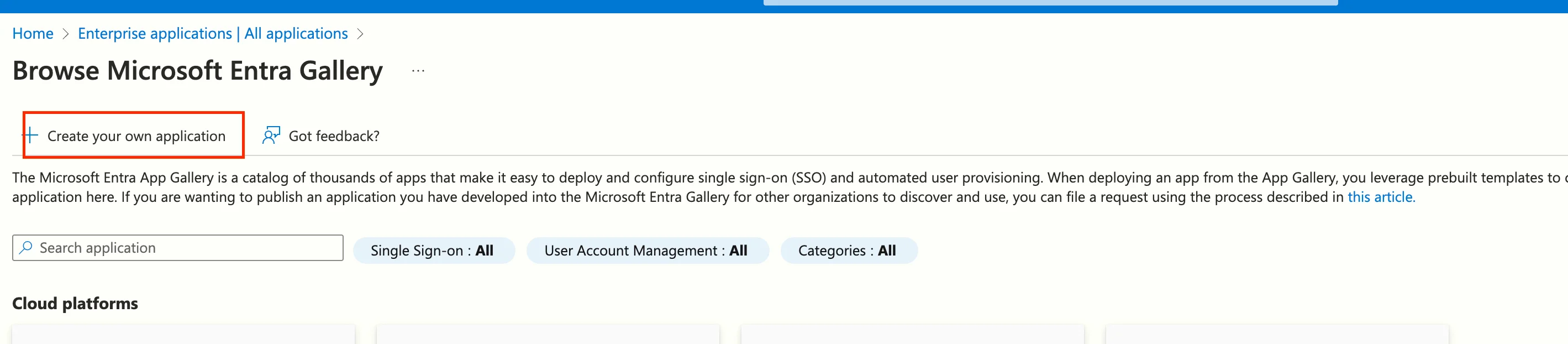

  1. Create Your Own Application:

Descope custom social login with microsoft, creating microsoft enterprise application 2

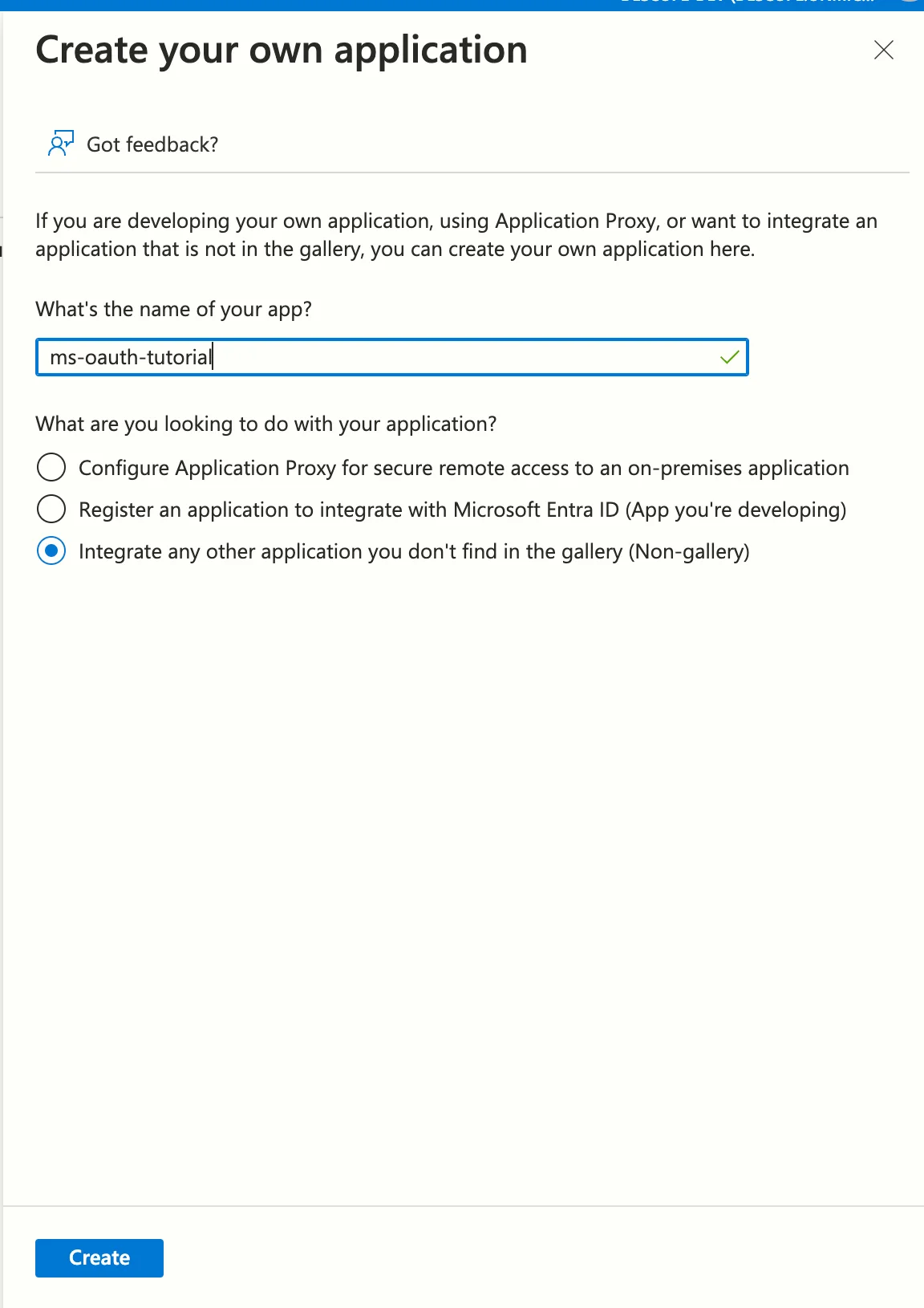

  1. Choose a name, keep the Integrate any other application you don't find in the gallery (Non-gallery) option selected and click on Create:

Descope custom social login with microsoft, creating microsoft enterprise application 3

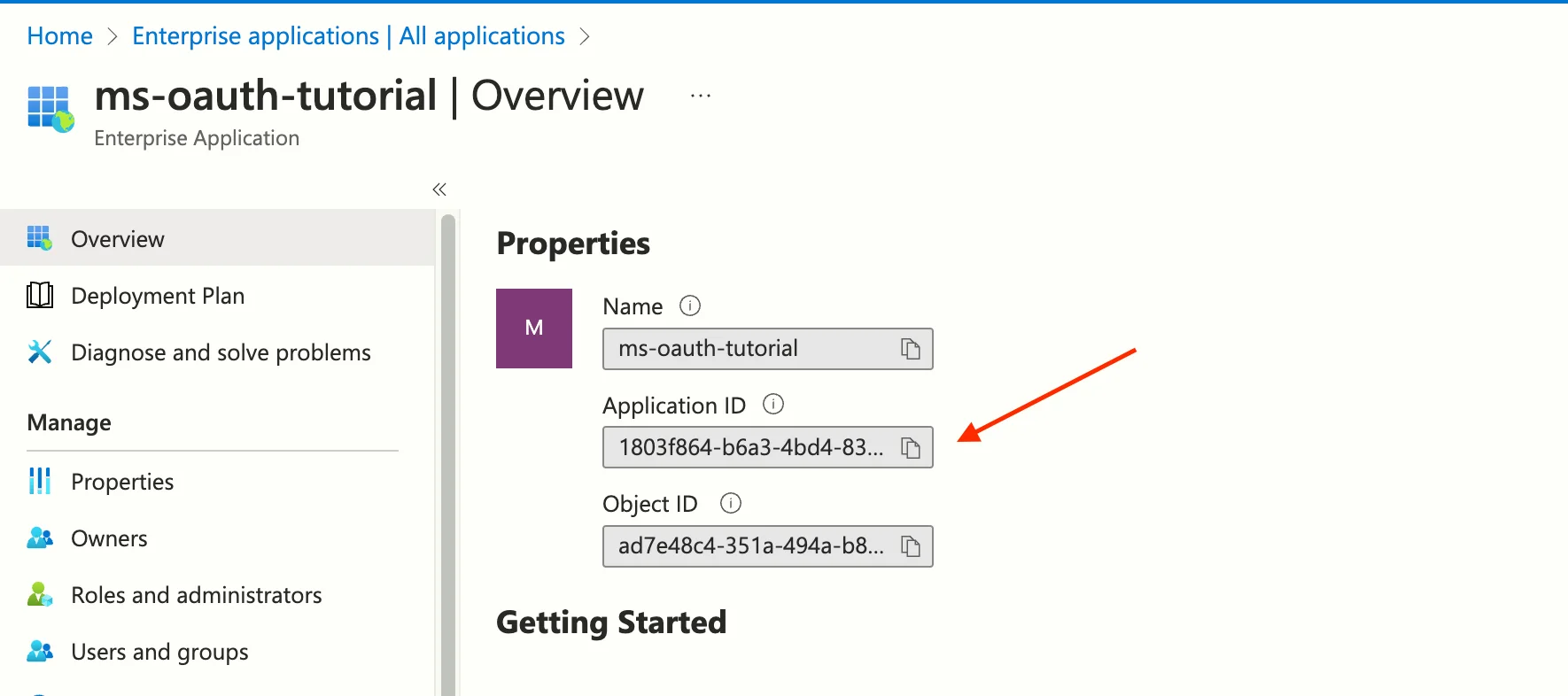

  1. Once you create the application, make sure to copy the application ID, and set it aside:

Descope custom social login with microsoft, creating Microsoftf application 3

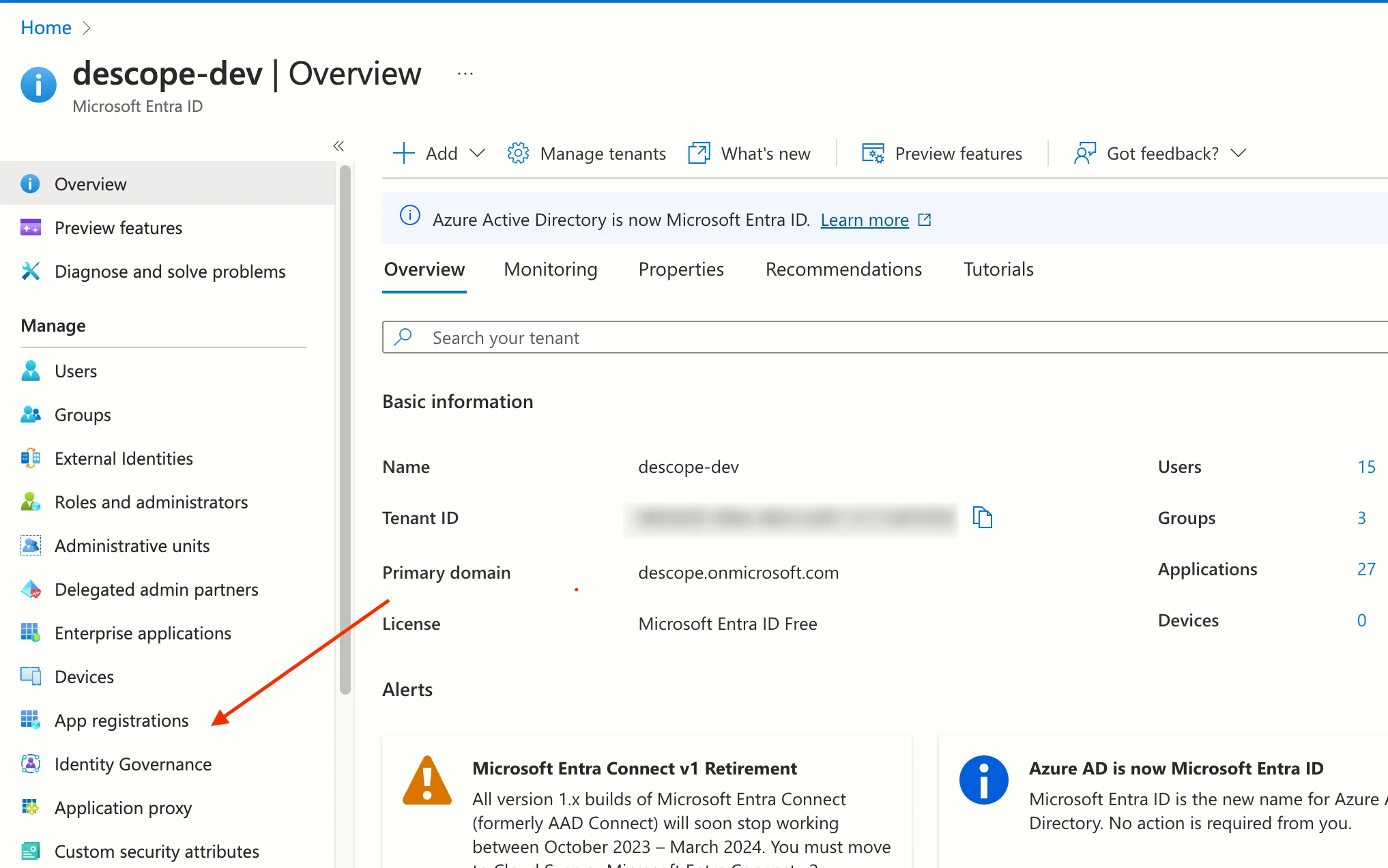

  1. Search for Microsoft Entra ID, and navigate to App Registrations under the manage tab:

Descope custom social login with Microsoft, creating microsoft application 4

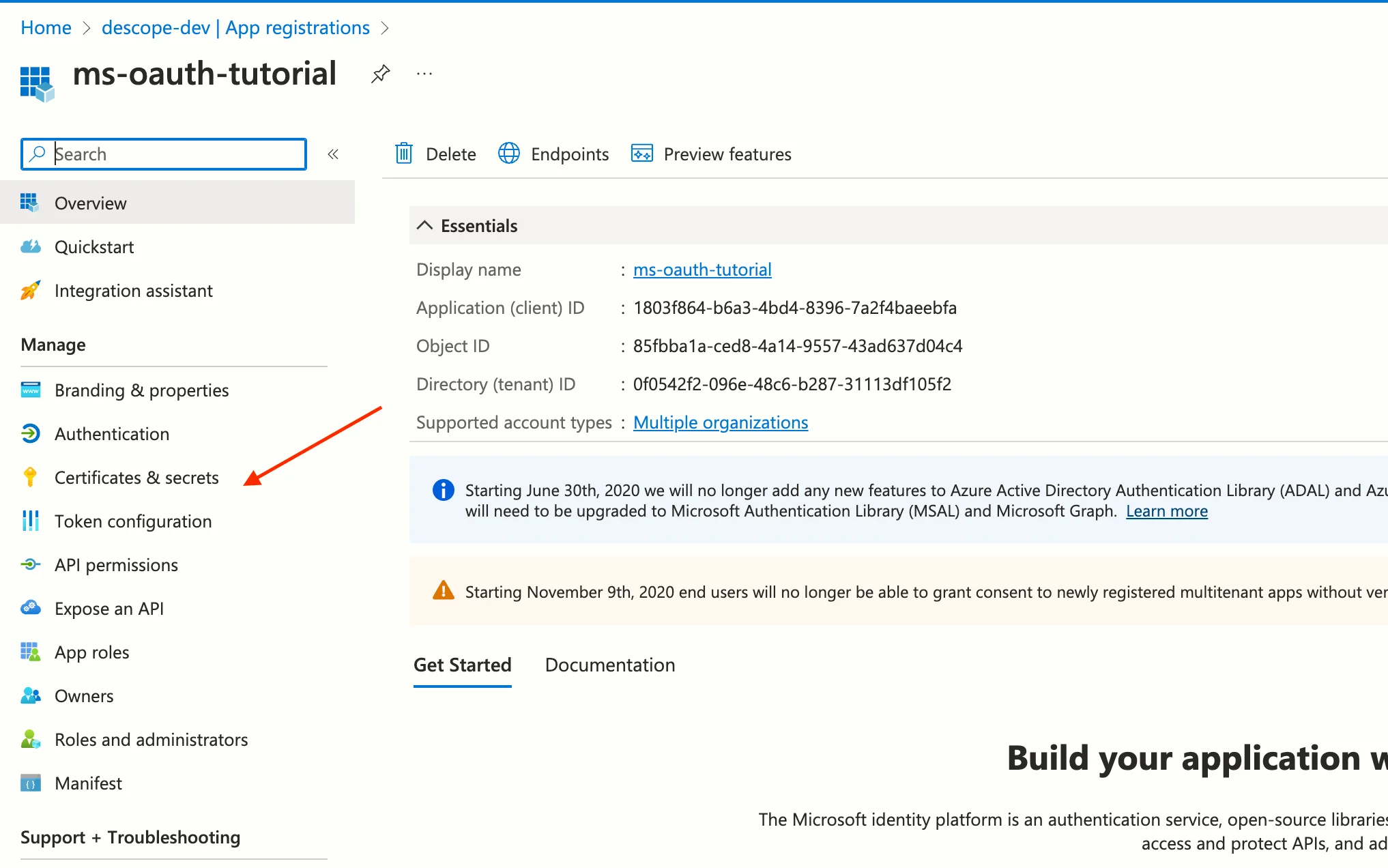

  1. Search for your application by name in the App Registrations tab, after finding it, click it. Then navigate to Certificates & Secrets:

Descope custom social login with Microsoft, creating microsoft application 5

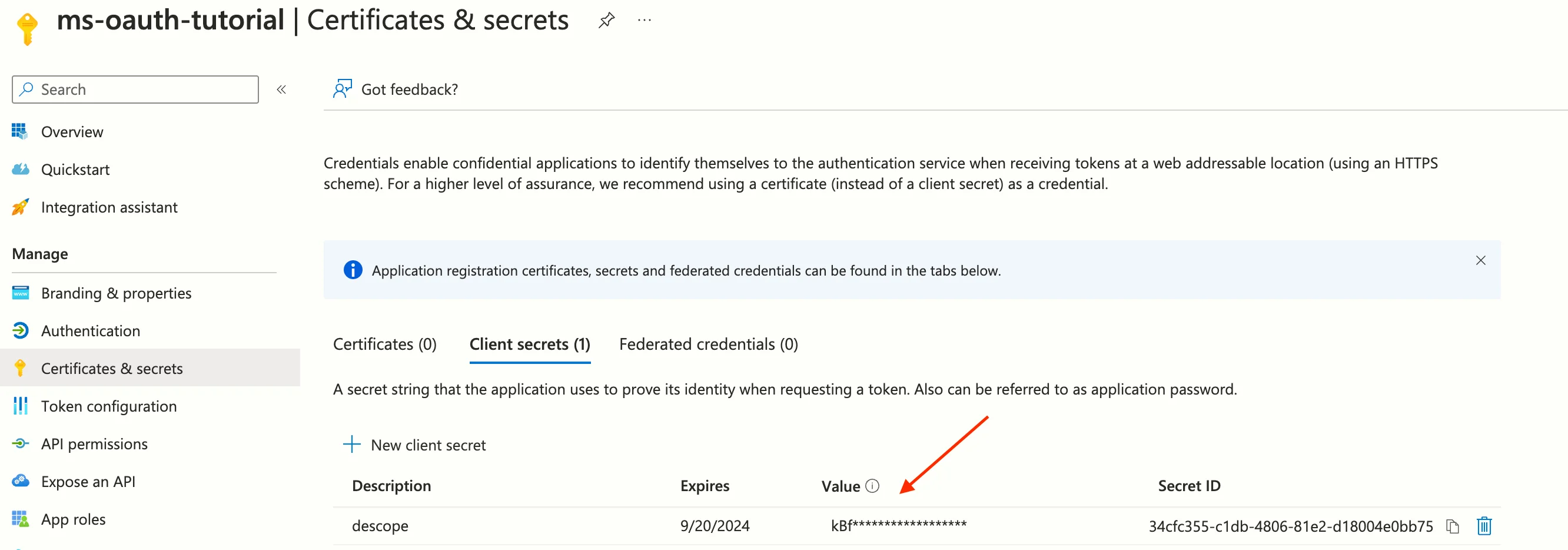

  1. Create a new secret, copy the value and set it aside:

Note

Exiting the page will hide the secret forever.

Descope custom social login with Microsoft, creating microsoft application 6

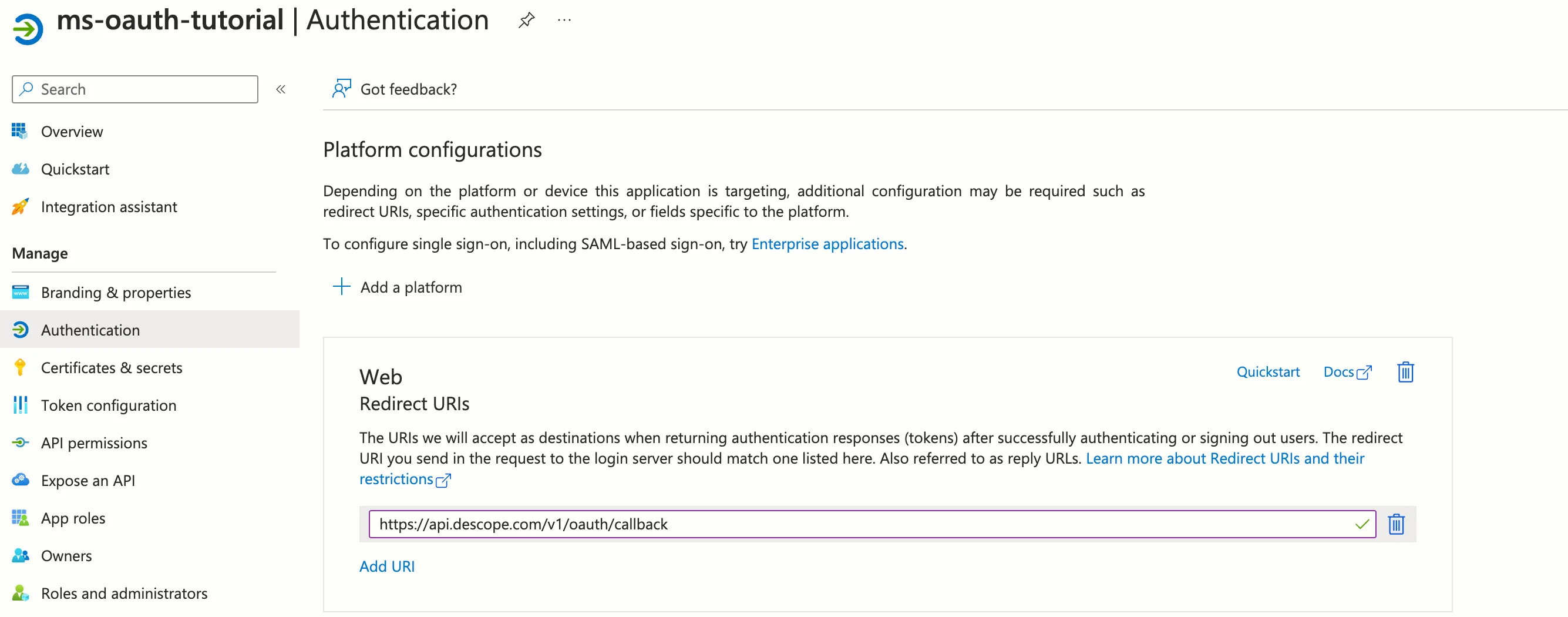

  1. Navigate to Authentication, add a new web platform, and set the callback URI to https://api.descope.com/v1/oauth/callback:

Descope custom social login with Microsoft, creating microsoft application 7

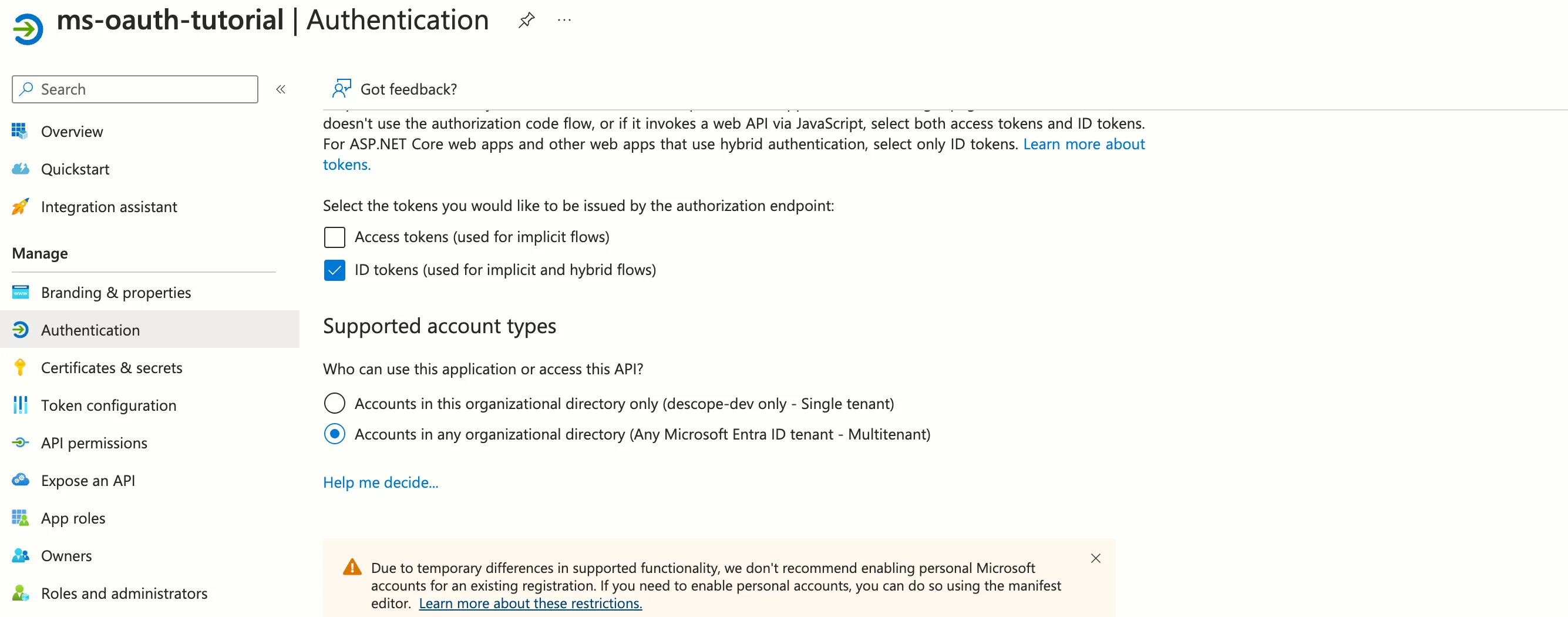

  1. Scroll down inside the Authentication page, and select the multi-tenant option to allow any user to use your app, click save:

Descope custom social login with Microsoft, creating microsoft application 8

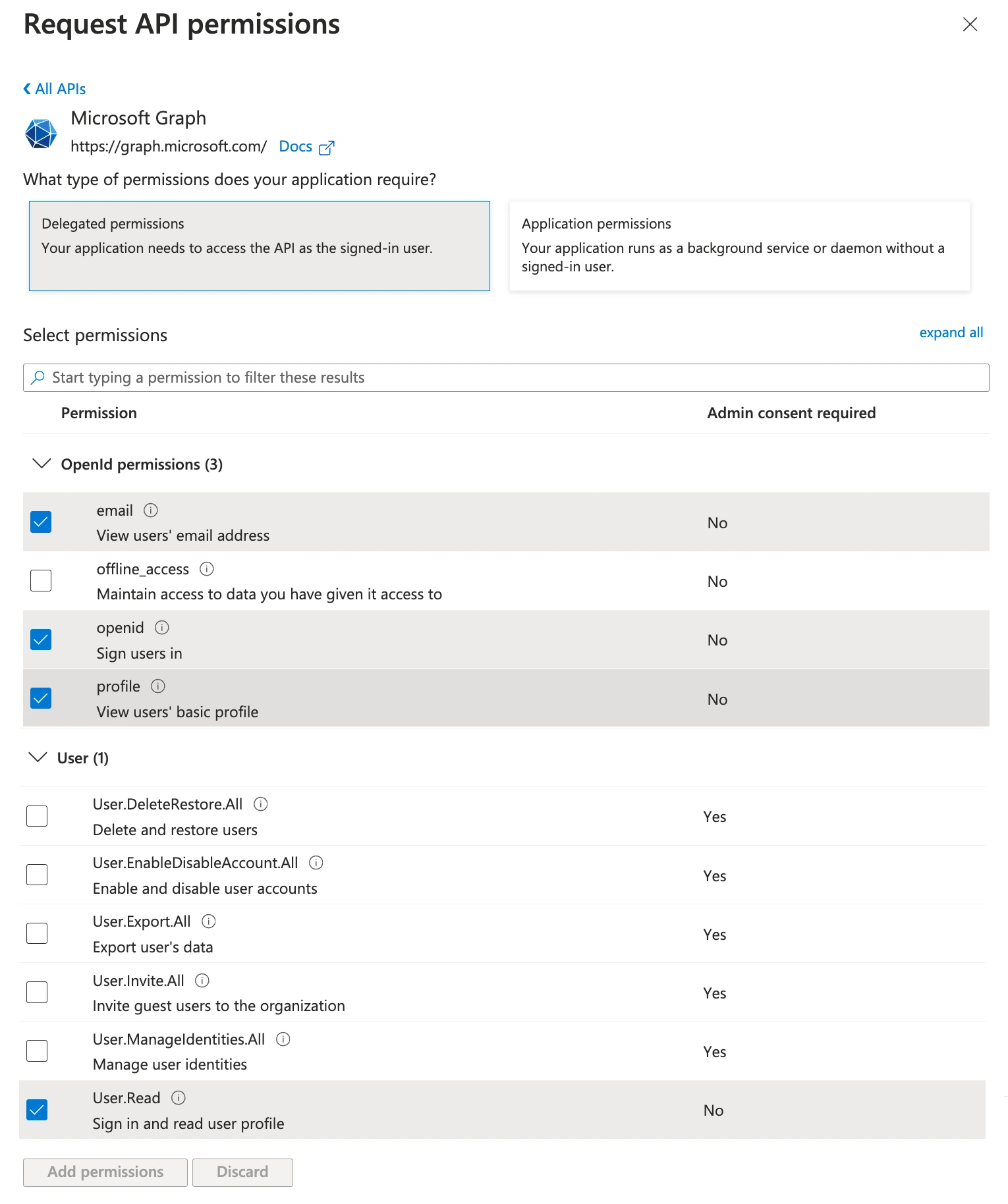

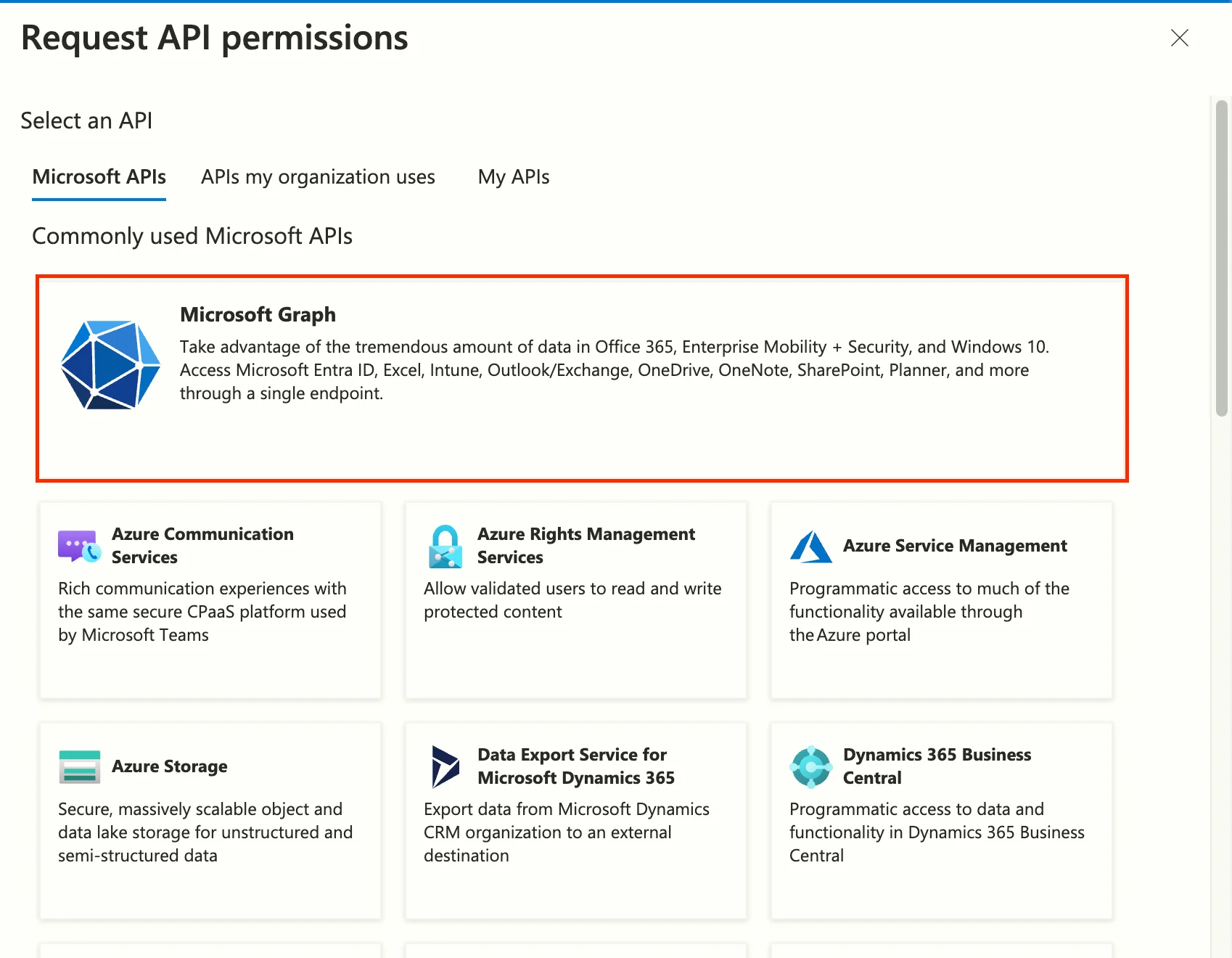

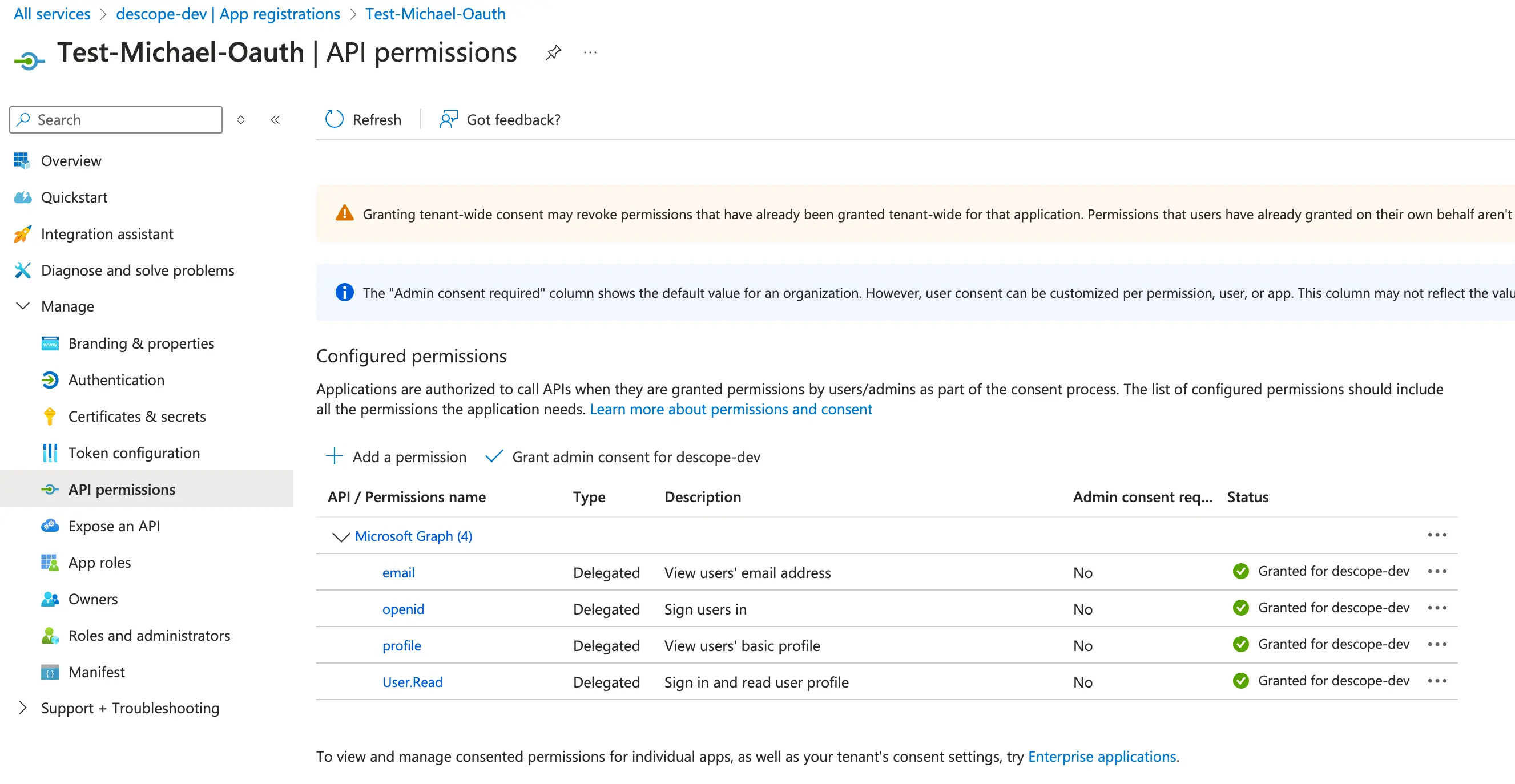

  1. Navigate to API Permissions, and create a new permission:

Descope custom social login with Microsoft, creating microsoft application 9

Descope custom social login with Microsoft, creating microsoft application 10

Descope custom social login with Microsoft, creating microsoft application 11

Note

You should ask your administrators to approve the permission granted to the app.

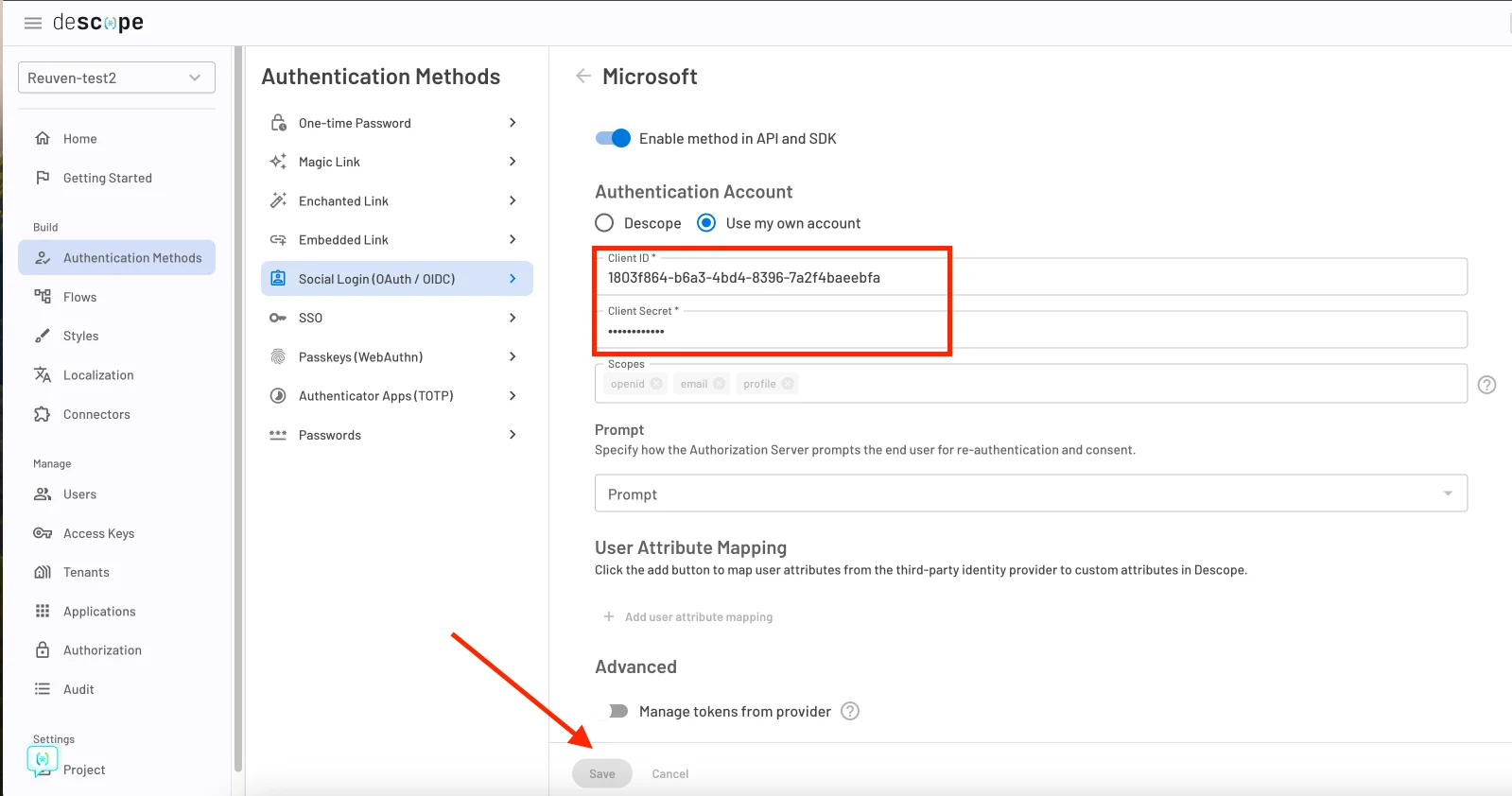

  1. Now on Descope, navigate to the custom Microsoft OAuth settings
  • Click on Use my own account.
  • Put the Application ID you put aside in the Client ID section.
  • Put the Client secret you created in the Client Secret section.
  • You can put the Prompt as Consent for testing.
  • Click save.

Descope custom social login with Microsoft, creating microsoft application 12

Testing Authentication

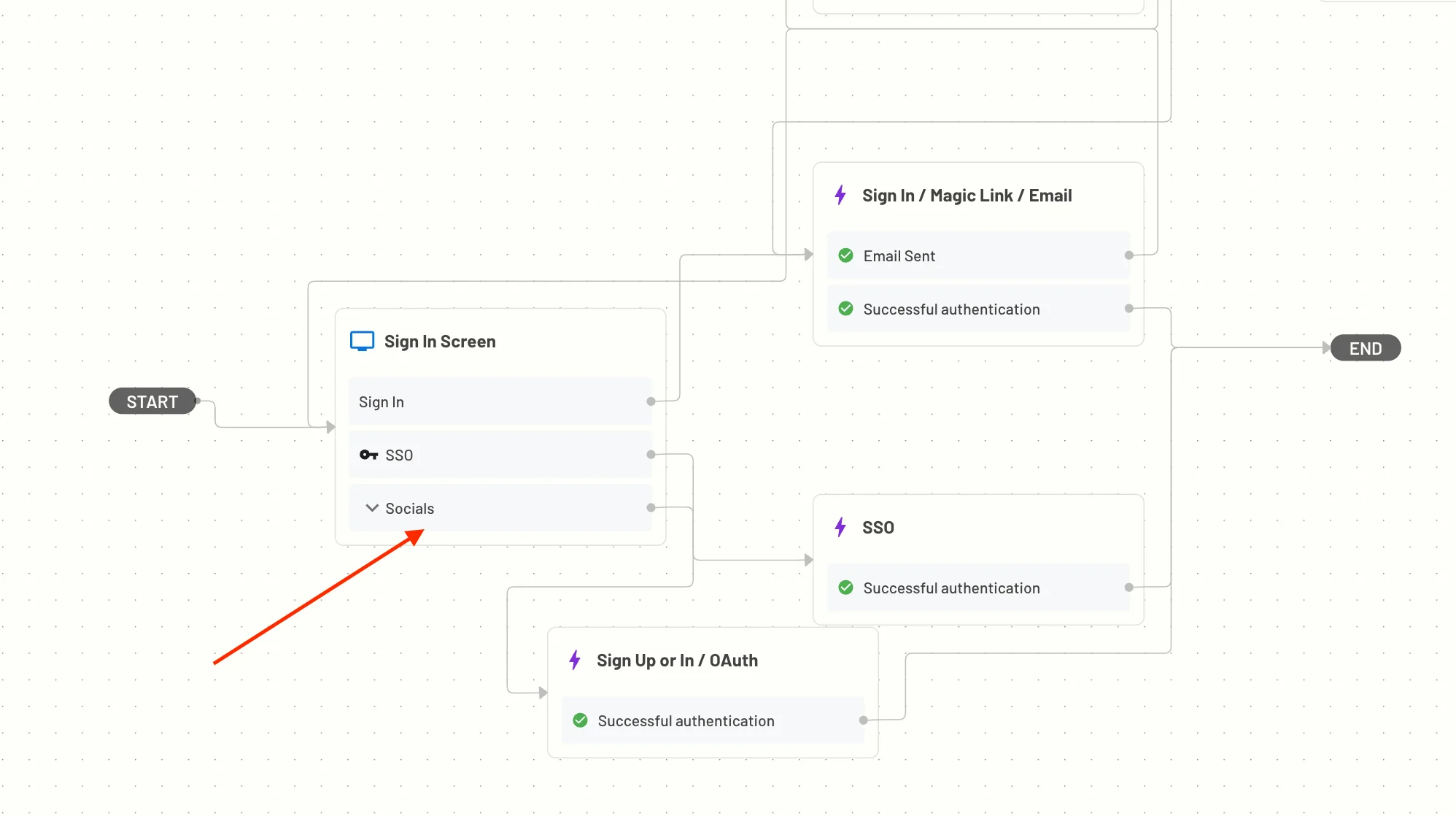

Now we are all set to test if our application works, here is an example flow that uses Microsoft OAuth:

Descope custom social login with Microsoft, creating microsoft application 13

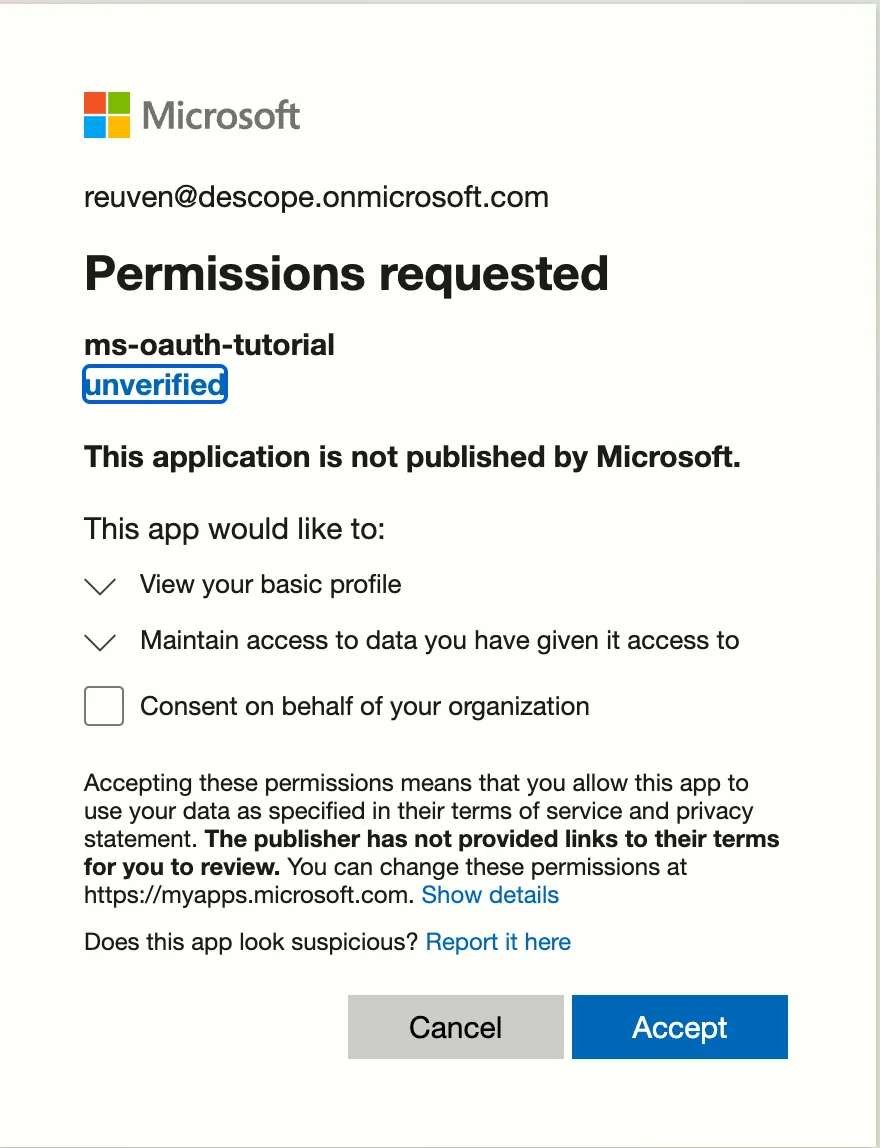

Now testing the flow, we can see that we get the consent screen with our custom app:

Descope custom social login with Microsoft, creating microsoft application 14

Enterprise Application Authentication

For your app to appear as verified by Microsoft, you need to pass verification.

And you're done! Now when you sign in, you should see your own personalized app page with your custom domain name. If you have any questions, please reach out to us here!

Merging identities from Microsoft

When using Microsoft for social login, Azure does not certainly verify the user's email. We at Descope understand that this could be a security flaw when a user tries to authenticate and we cover this subject in this blog. By default, we do not merge email addresses to an existing user login ID to prevent this security flaw from actually happening. Inside Descope flows, we provide the option to triage based on email verification status using authInfo.user.verifiedEmail. If you want to merge the user based on the user's email address, follow these steps:

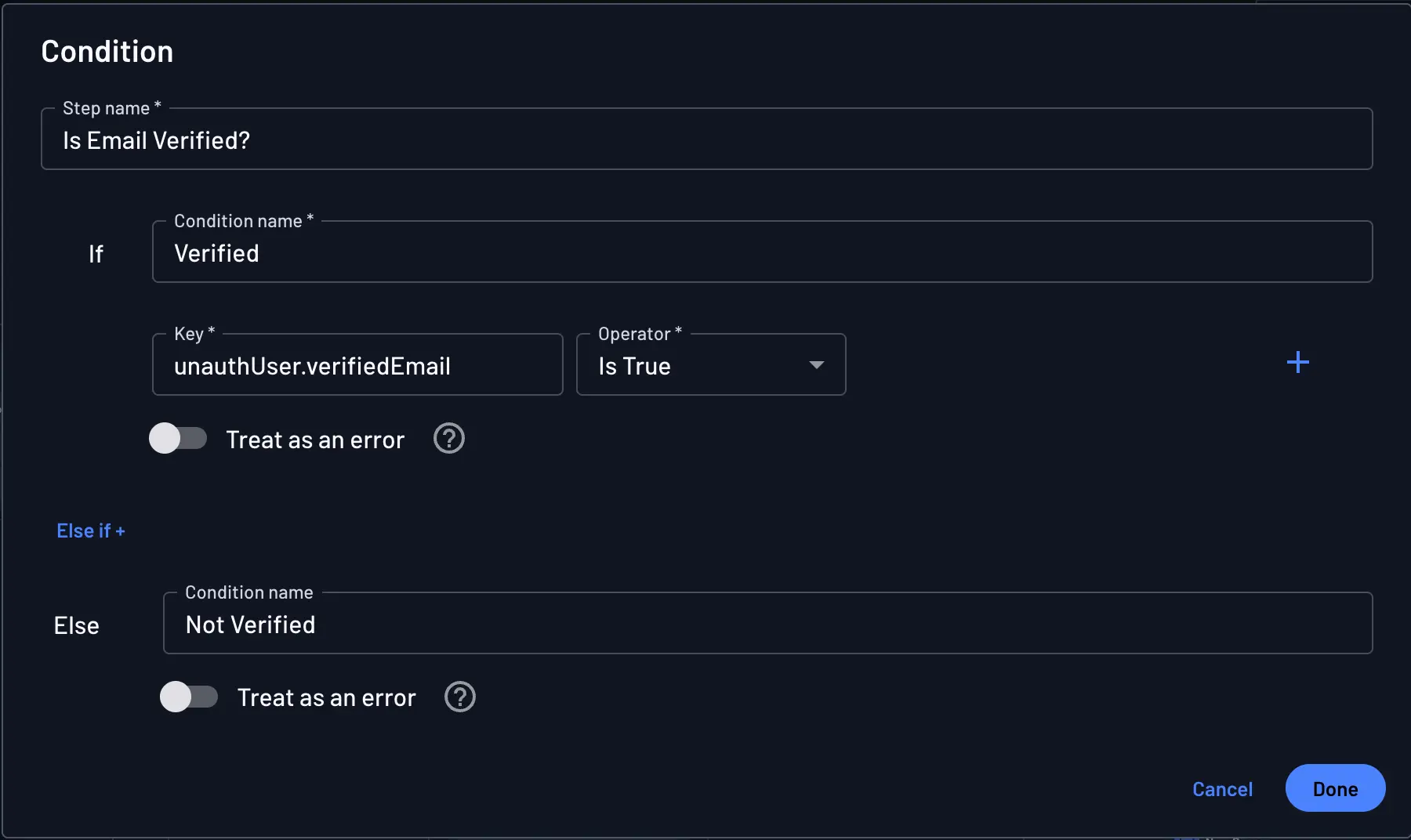

  • Triage based on condition:

Descope custom social login with Microsoft, triage

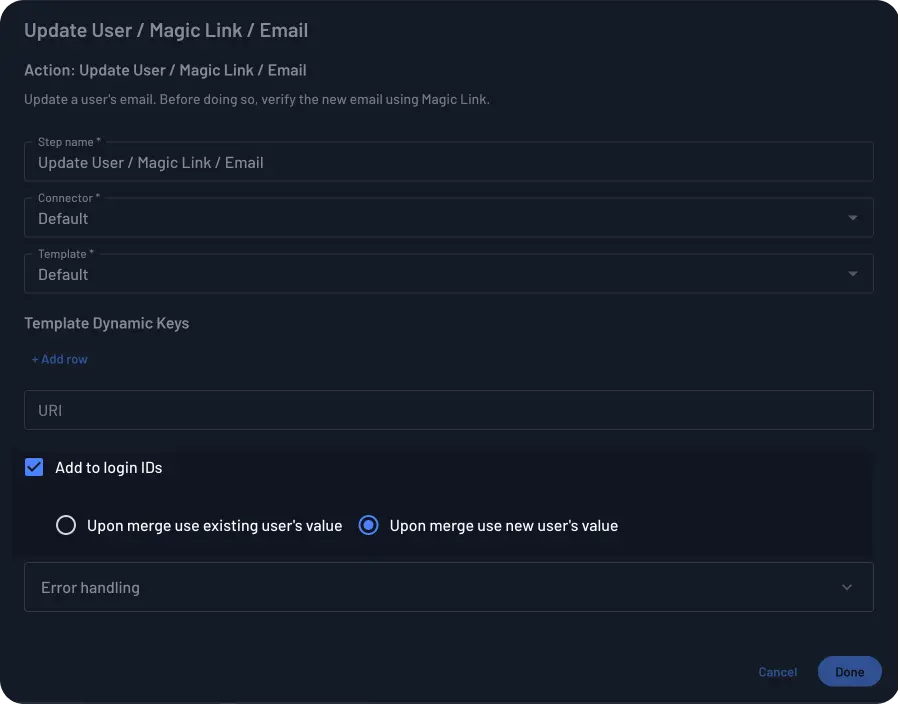

  • Merge the identity after verifing the email:

Descope custom social login with Microsoft, merge identity inside the flow

Implementing Email Verification with Microsoft claims:

Microsoft provides the xms_edov (Email Domain Owner Verified) claim that indicates whether an email is domain-verified. Using this claim can bypass verification issues entirely. There is an alternative claim primary_verified_email that can also be used for email verification. To implement this in your flow, follow these steps:

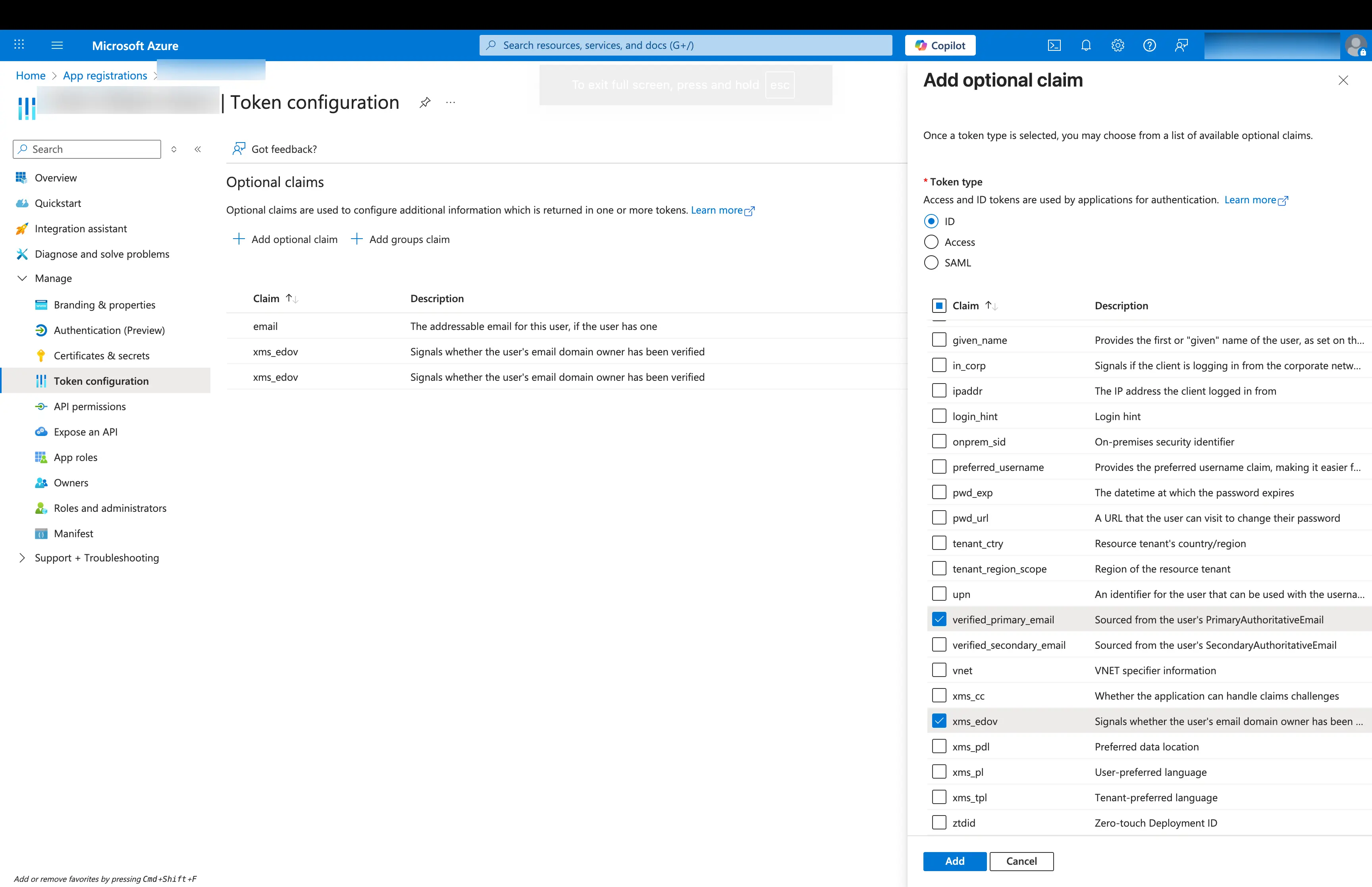

  • Go to the OAuth application registration in Microsoft Azure portal, navigate to Token configuration, and add either one of the claims as optional claims for ID token: Descope custom social login with Microsoft, add optional claims in microsoft app registration

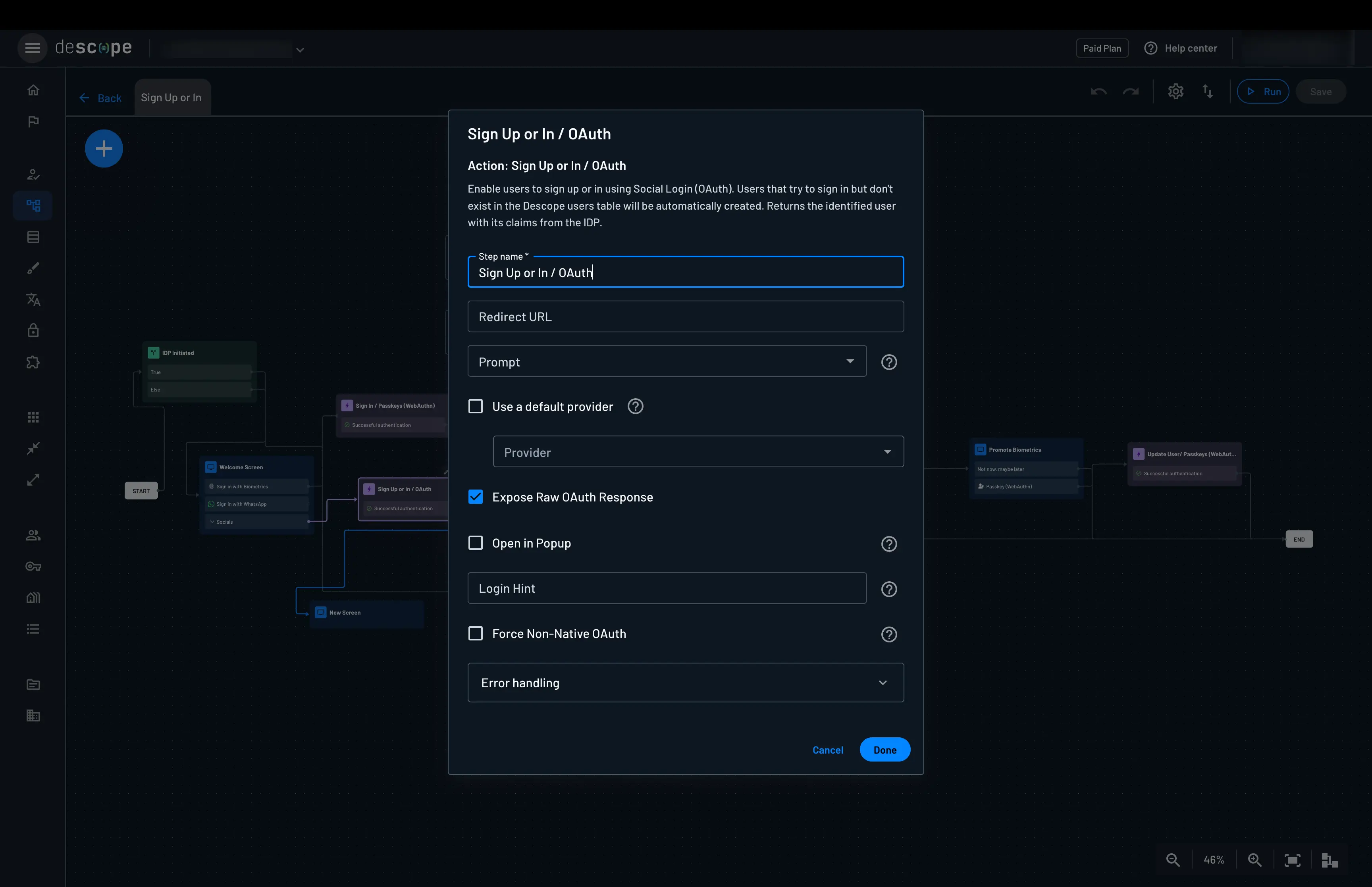

  • Go to the OAuth step inside your flow, and mark "expose raw OAuth response": Descope custom social login with Microsoft, expose raw OAuth response

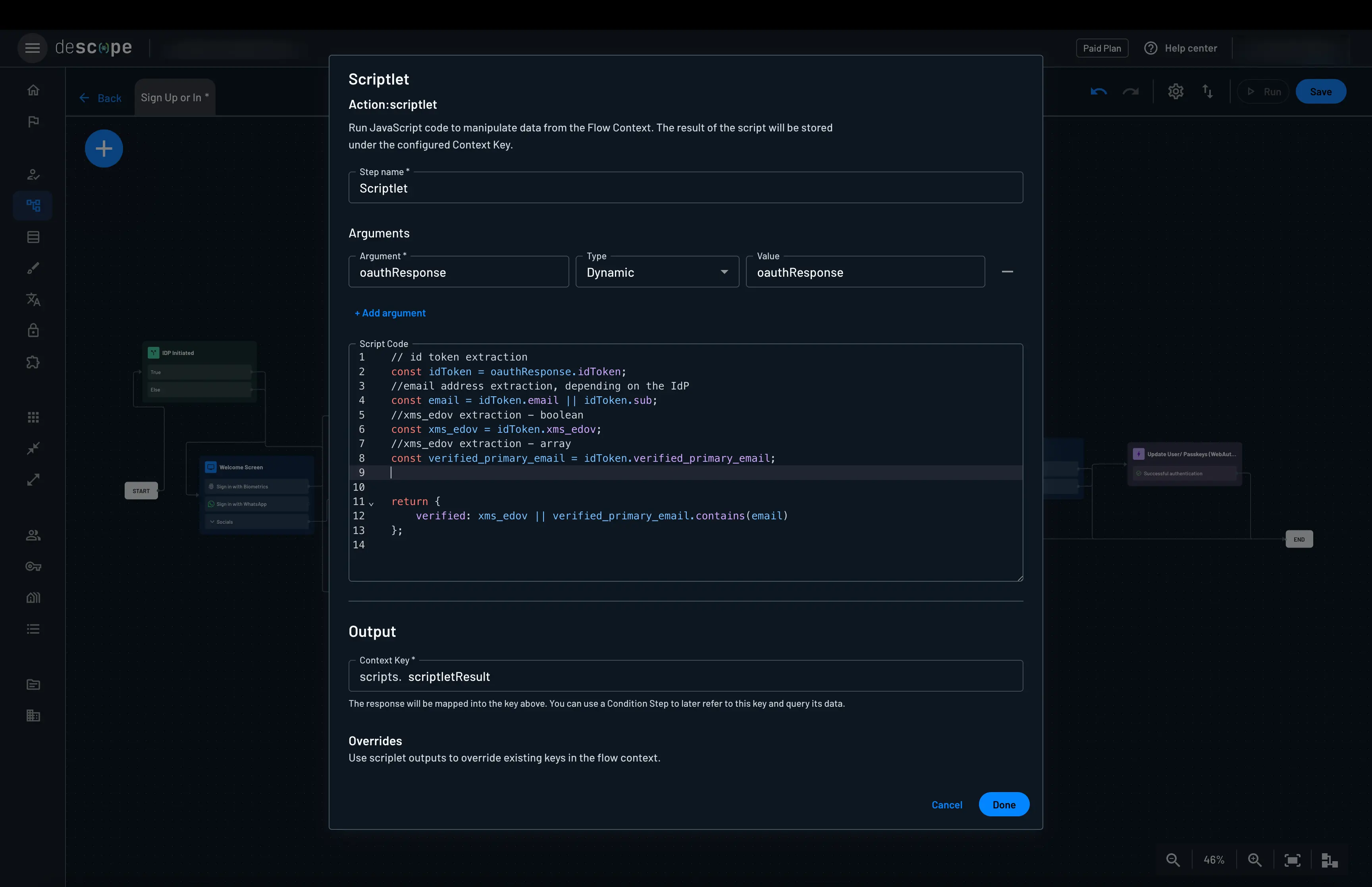

  • After the OAuth step, add a Scriptlet to set the email verification status based on the claims: Descope custom social login with Microsoft, scriptlet to set email verification

Here is an example scriptlet code to set the email verification status:


// id token extraction
const idToken = oauthResponse.idToken;
//email address extraction, depending on the IdP
const email = idToken.email || idToken.sub;
//xms_edov extraction - boolean
const xms_edov = idToken.xms_edov;
//xms_edov extraction - array
const verified_primary_email = idToken.verified_primary_email;


return {
    verified: xms_edov || verified_primary_email.contains(email)
};

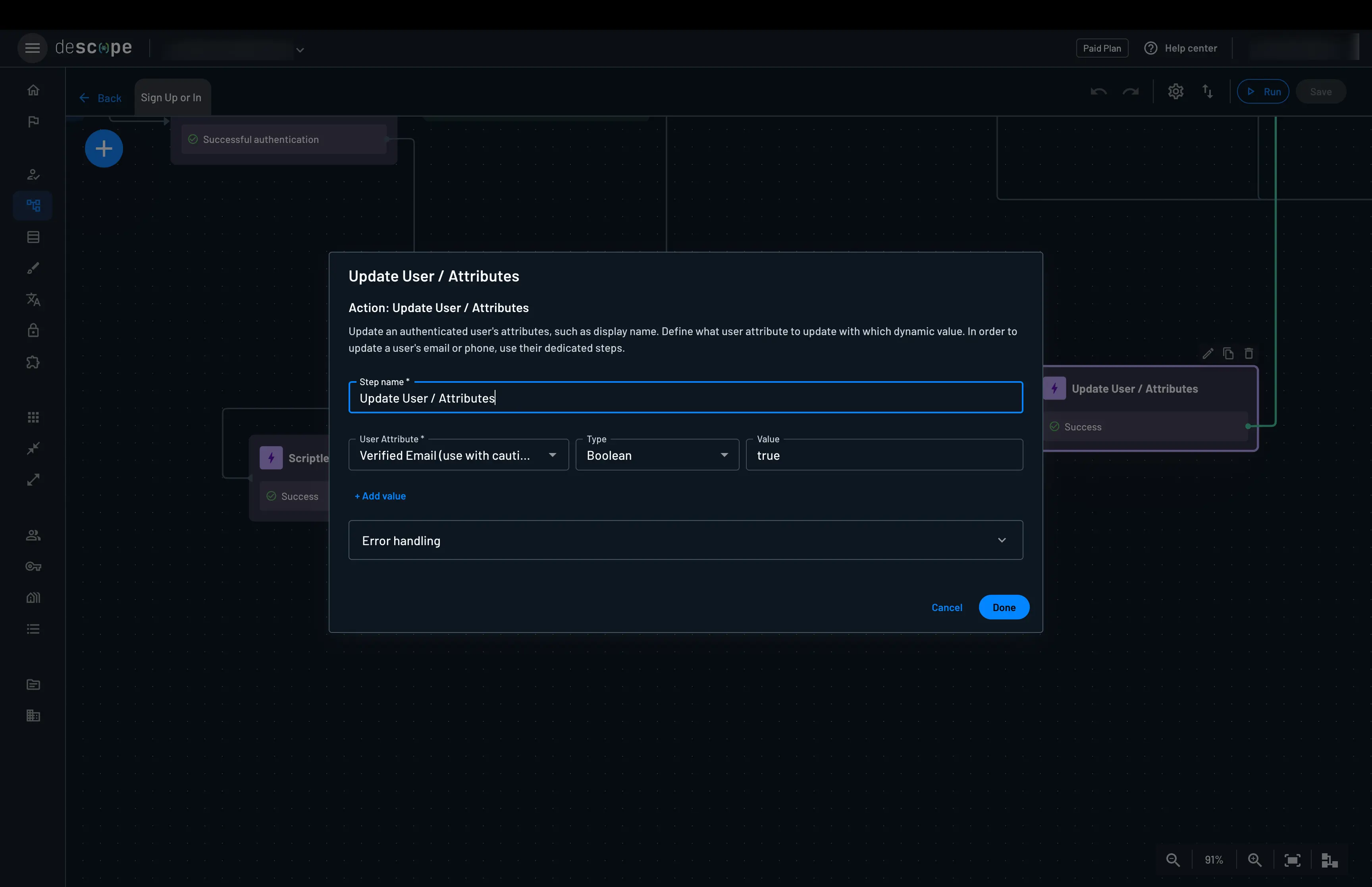

  • Mark the email as verified if either of the claims indicate verification: Descope custom social login with Microsoft, update user email verification based on claims
