Using Descope JWTs with Azure API Management

By configuring Descope JWTs to work with Azure API Management (APIM), you can protect your backend APIs using secure, validated tokens issued by Descope. This allows you to enforce fine-grained access control and identity verification before traffic reaches your API endpoints.

Azure APIM offers a built-in policy called validate-jwt that you can use to decode and validate JWTs issued by trusted identity providers like Descope.

Requirements

• A Descope project with JWT templates configured.
• An Azure API Management instance.
• An API published in your APIM instance.

Step 1: Configure a JWT Template in Descope

Go to the JWT Template section of the Descope Console and select the AWS API Gateway template.

Step 2: Apply validate-jwt Policy in APIM

In Azure API Management (APIM), policies are a way to control how requests and responses are processed through your APIs. You can apply policies at different levels depending on your needs:

• Product level: A product is a collection of APIs bundled together (e.g., all internal APIs, all partner APIs). When you apply a policy at the product level, it applies to all APIs and operations in that product.
• API level: An API in APIM is a logical wrapper for a backend service. Applying a policy at the API level applies it to all operations (routes) within that API.
• Operation level: An operation is a single endpoint, such as GET /orders or POST /users. Applying a policy at this level only affects that specific route.

If you want to apply JWT validation across all endpoints of an API, use the API level. If you need more granular control (e.g., only protect POST endpoints), apply the policy at the operation level.

How to Apply the validate-jwt Policy

To validate Descope JWTs at the operation level, follow these steps:

1. Navigate to your Azure API Management instance in the Azure portal.
2. In the left-hand menu, go to APIs and select the API you want to protect.
3. From the API design view, select a specific operation (e.g., GET /users) or click on the API name to apply the policy to all operations.
4. Go to the Design tab, then select Inbound processing.

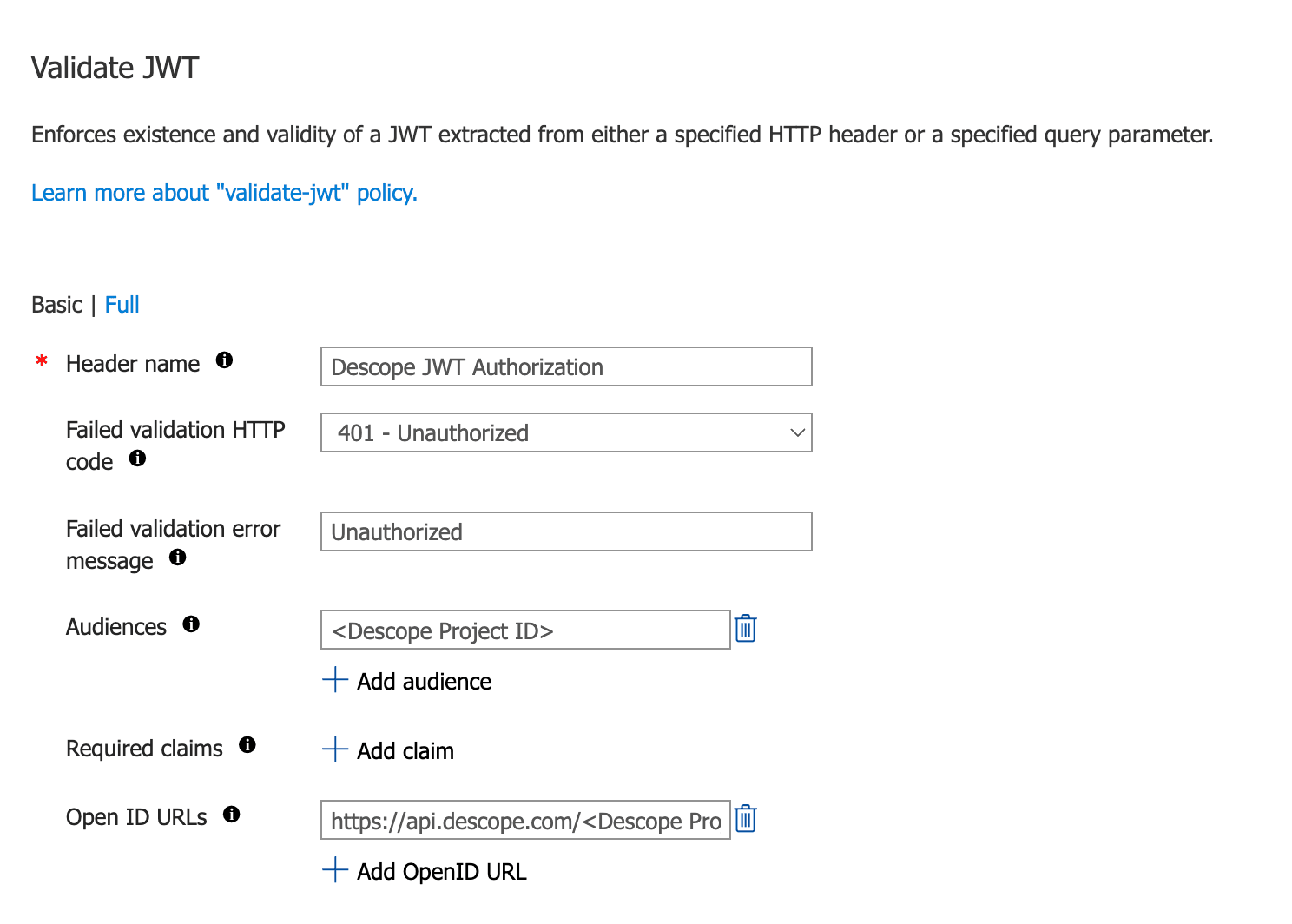

5. Click Add policy, then choose Validate JWT from the policy templates.
6. You can now paste the policy below, or use the policy editor to configure the policy.

Here's a sample validate-jwt policy:

<validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="Unauthorized" require-scheme="Bearer">
  <openid-config url="https://api.descope.com/<YourProjectID>/.well-known/openid-configuration" />
  <audiences>
    <audience><YourProjectID></audience>
  </audiences>
  <issuers>
    <issuer>https://api.descope.com/<YourProjectID></issuer>
  </issuers>
</validate-jwt>

Replace <YourProjectID> with your actual Descope project ID.

Once added, this policy will:

• Look for a Bearer token in the Authorization header.
• Use the OpenID configuration from Descope to verify the JWT signature.
• Ensure the aud (audience) claim matches your Descope project ID.
• Reject requests with missing or invalid tokens by returning a 401 Unauthorized response.

This setup allows APIM to handle JWT validation directly at the gateway, reducing the need to repeat validation logic in each backend service.

Step 3: Test with a Descope JWT

1. Authenticate a user with Descope and retrieve their JWT.
2. Make an API call to your APIM-protected endpoint, including the JWT in the Authorization header:

curl https://<your-apim-endpoint>/your-api-route \
  -H "Authorization: Bearer <DescopeJWT>"

If the token is valid, the request will be allowed through. Otherwise, APIM will return a 401 Unauthorized response.

Optional: Enforce Roles or Scopes

You can add custom claims to your Descope JWT (e.g., role, scope) and enforce them using the <claim> tags in the validate-jwt policy.

<required-claims>
  <claim name="scope">
    <value>deals:read</value>
  </claim>
</required-claims>

Handling Authorization Claims in Descope JWTs

By default, Descope JWTs use a nested tenants object to define roles and permissions per tenant. However, Azure API Management's validate-jwt policy does not currently support evaluating nested JSON structures, which means you cannot validate roles that are nested within the tenants object.

{
  "tenants": {
    "tenant-123": {
      "roles": ["manager", "editor"],
      "permissions": ["deals:write"]
    }
  }
}

To validate roles effectively, you can use a different authorization claim format in your JWT template.

If you use the Current tenant, no tenant reference authorization claim format in your JWT template, roles will exist in the JWT at directly at the top level (e.g., project-wide roles or tenant-scoped roles with dct), and therefore can be validated using your validate-jwt policy.

This is an example of a JWT with flat roles:

{
  "roles": ["admin", "user"],
  "permissions": ["deals:read"],
  "dct": "tenant-123",
  ...
}

With this format, you can enforce access by matching the role or permission directly:

<required-claims>
  <claim name="roles">
    <value>admin</value>
  </claim>
  <claim name="permissions">
    <value>deals:read</value>
  </claim>
</required-claims>

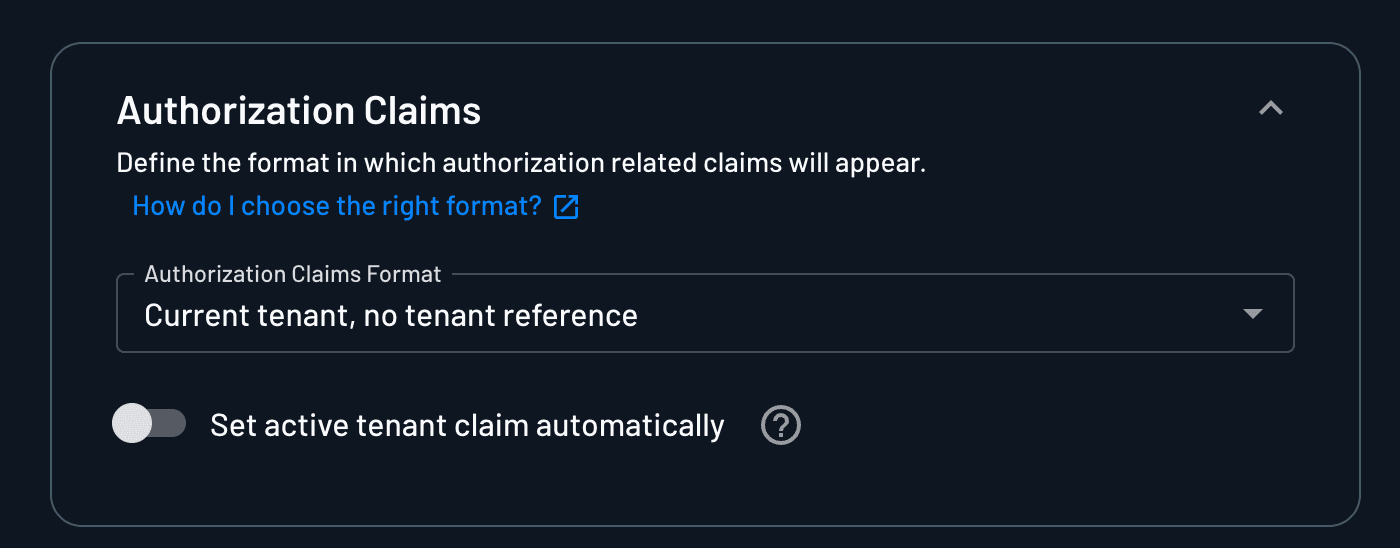

You can configure this custom authorization structure via your JWT Template settings, in the Authorization Claims section.

Step 3: Consuming JWT Output in the Backend

Once validate-jwt is configured, you can forward validated token data to your backend by using the output-token-variable-name parameter and setting a custom header with the token contents.

Using Custom Headers to Forward the JWT

<set-header name="Descope-Token" exists-action="override">
  <value>@(JsonConvert.SerializeObject(((Jwt)context.Variables["descope-token"])))</value>
</set-header>

This sets a header called Descope-Token with the entire validated JWT object as a JSON object.

Conditionally Add Custom Headers If Token Is Present

If you only want to set the header if the token is present, you can use the condition attribute to check if the token is present.

<choose>
  <when condition='@((Jwt)context.Variables["descope-token"] != null)'>
    <set-header name="Descope-Token" exists-action="override">
      <value>@(JsonConvert.SerializeObject(((Jwt)context.Variables["descope-token"])))</value>
    </set-header>
  </when>
</choose>

This ensures the header is only set when token validation is successful.

Adding Specific Claims from the JWT to Custom Headers

If your services need to access specific claims from the JWT, rather than the entire JWT, you can extract them and forward them as custom headers.

<choose>
  <when condition='@(!string.IsNullOrEmpty((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("sub")))'>
    <set-header name="Descope-Subject" exists-action="override">
      <value>@((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("sub"))</value>
    </set-header>
  </when>
</choose>

<choose>
  <when condition='@(!string.IsNullOrEmpty((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("email")))'>
    <set-header name="Descope-Email" exists-action="override">
      <value>@((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("email"))</value>
    </set-header>
  </when>
</choose>

This will set the Descope-Subject and Descope-Email headers with the sub and email claims from the JWT.

Creating a Reusable JWT Validation Fragment

Azure API Management (APIM) policies are often repeated across different APIs or endpoints — for example, validating a JWT and extracting claims might be needed in multiple places.

Rather than copying and pasting the same policy logic into every API or operation, APIM lets you define a reusable block of policy code called a policy fragment.

Example Fragment

You create a fragment called ValidateJwtFragment that includes:

• A validate-jwt policy to check the Descope token.
• A few set-header policies to forward user claims like email and sub.

Then, in any API, you just include the fragment like this:

<fragment>
  <validate-jwt
    header-name="Authorization"
    failed-validation-httpcode="401"
    failed-validation-error-message="Unauthorized"
    require-scheme="Bearer"
    output-token-variable-name="descope-token">

    <openid-config url="https://api.descope.com/<YourProjectID>/.well-known/openid-configuration" />

    <audiences>
      <audience><YourProjectID></audience>
    </audiences>
    <issuers>
      <issuer>https://api.descope.com/<YourProjectID></issuer>
    </issuers>
  </validate-jwt>

  <choose>
    <when condition='@(!string.IsNullOrEmpty((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("sub")))'>
      <set-header name="Descope-Subject" exists-action="override">
        <value>@((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("sub"))</value>
      </set-header>
    </when>
  </choose>
  <choose>
    <when condition='@(!string.IsNullOrEmpty((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("email")))'>
      <set-header name="Descope-Email" exists-action="override">
        <value>@((string)((Jwt)context.Variables["descope-token"]).Claims.GetValueOrDefault("email"))</value>
      </set-header>
    </when>
  </choose>
</fragment>

This automatically applies all the validation and header logic — without needing to repeat it every time.

Once defined, you can include the fragment at the inbound policy section:

<policies>
  <inbound>
    <base />
    <include-fragment fragment-id="ValidateJwtFragment" />
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>

This modular approach keeps your JWT validation logic consistent and reusable across multiple APIs or operations.

Conclusion

Using Descope JWTs with Azure API Management enables you to enforce identity-based access control directly at the API gateway layer.

By applying a few policy configurations in APIM and issuing structured JWTs from Descope, you can manage access to your APIs without adding custom authentication logic to your backend services.

For more information on how to configure Azure API Management policies in general, see the Azure API Management policies documentation.
