LDAP Connector

Use the LDAP connector to authenticate users against an LDAP directory server. This connector supports both traditional username/password authentication and mutual TLS (mTLS) authentication.

Setting Up the LDAP Connector

To integrate the LDAP connector, follow the steps below:

1. Navigate to Connector

• Visit the Connectors page in the Descope Console.
• Choose LDAP from the list of connectors.

2. Connector Setup

Set up the necessary inputs:

• LDAP Server URL: The LDAP server URL (e.g., ldap://localhost:389 for standard LDAP or ldaps://localhost:636 for LDAP over SSL/TLS)

• When Use mTLS is disabled - Username/Password Authentication:

  • Bind DN: The Distinguished Name to bind with for searching
  • Bind Password: The password for the bind DN

• When Use mTLS is enabled - Certificate-based Authentication:

  • Client Certificate (CRT): The client certificate in PEM format for mTLS authentication
  • Client Private Key (KEY): The client private key in PEM format for mTLS authentication
  • CA Certificate (PEM): The Certificate Authority certificate in PEM format for validating the server certificate
  • Reject Unauthorized: Reject connections to LDAP servers with invalid certificates (default: true)

3. Test & Save

• Validate your configuration by clicking the Test button and observing the Test Results section.
• Once successful, click Create to save the connector.

Implementing the LDAP Connector in Your Flow

1. Select or Create a Flow

• Access your Dashboard -> Flows.
• Select an existing flow or create a new one.

2. Integration

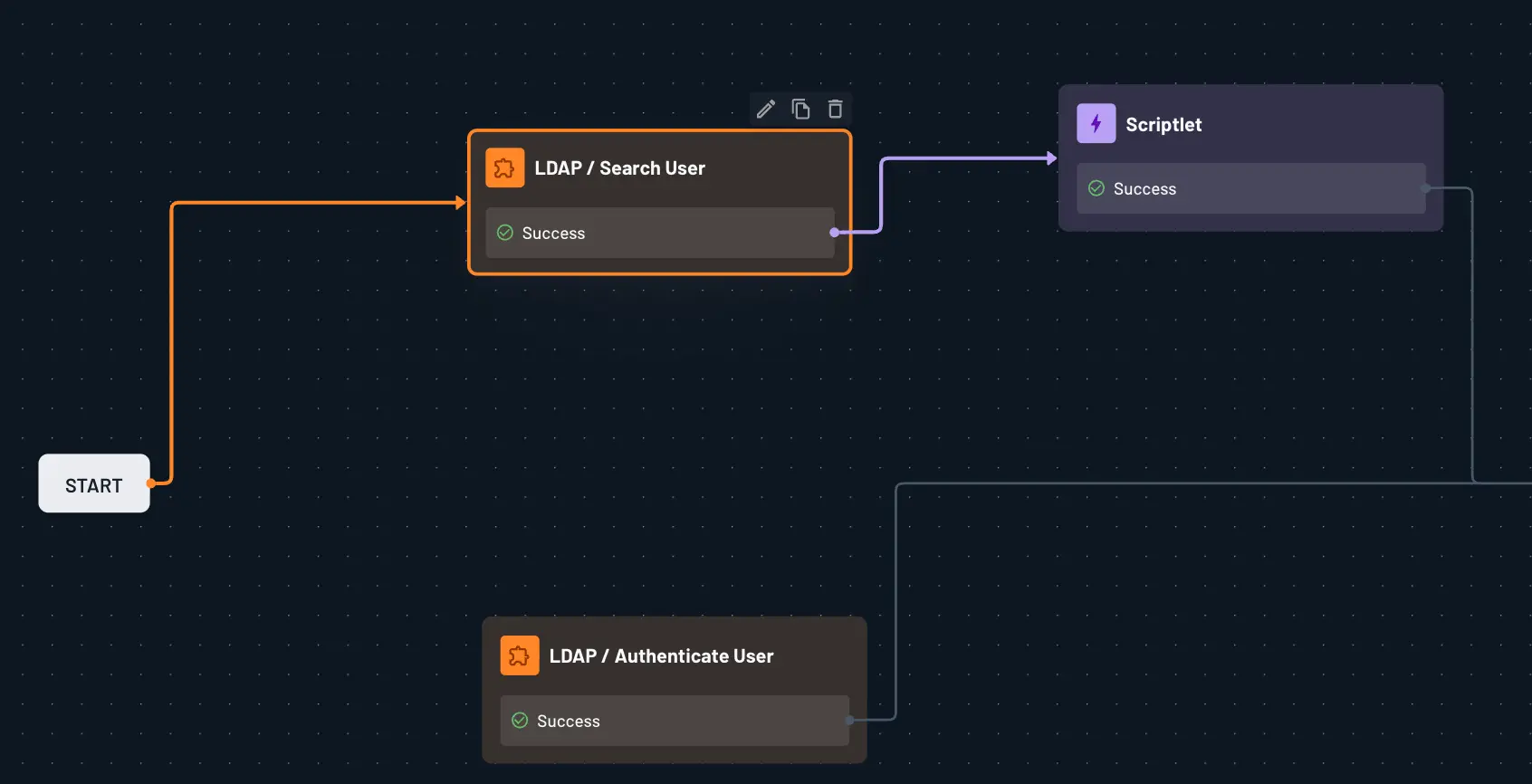

Add the LDAP / Search User command in the flow. The Search User command should be used whenever you need to search for a user in the LDAP directory.

Parameters:

• baseDn (required): The base Distinguished Name for LDAP searches (e.g., dc=example,dc=com)
• searchFilter (required): The LDAP search filter template. Use any dynamic value by using {{value}} as a placeholder (e.g., (mail={{user.email}}) or (uid={{user.name}})).
• userAttributes (required): Comma-separated list of attributes to retrieve. The dn attribute is always included automatically.
• scope (optional): The search scope for LDAP queries. Valid values are:
  • sub (default): Search the base DN and all its descendants (subtree search)
  • one: Search only the immediate children of the base DN (one-level search)
  • base: Search only the base DN itself (base object search)
  • children: Search all subordinates of the base DN to any depth, excluding the base DN itself
• derefAliases (optional): Specifies how alias dereferencing is done during the search. Valid values are:
  • never (default): Never dereference aliases
  • always: Always dereference aliases
  • search: Dereference aliases during the search phase, but not when locating the base DN
  • find: Dereference aliases when locating the base DN, but not during the search phase

Response:

{
  "status": "success",
  "data": {
    "found": true,
    "userDn": "cn=John Doe,ou=users,dc=example,dc=com",
    "attributes": {
      "cn": ["John Doe"],
      "mail": ["john.doe@example.com"],
      "uid": ["johndoe"],
      "sn": ["Doe"],
      "givenName": ["John"]
    }
  }
}

Or when user is not found:

{
  "status": "success",
  "data": {
    "found": false
  }
}

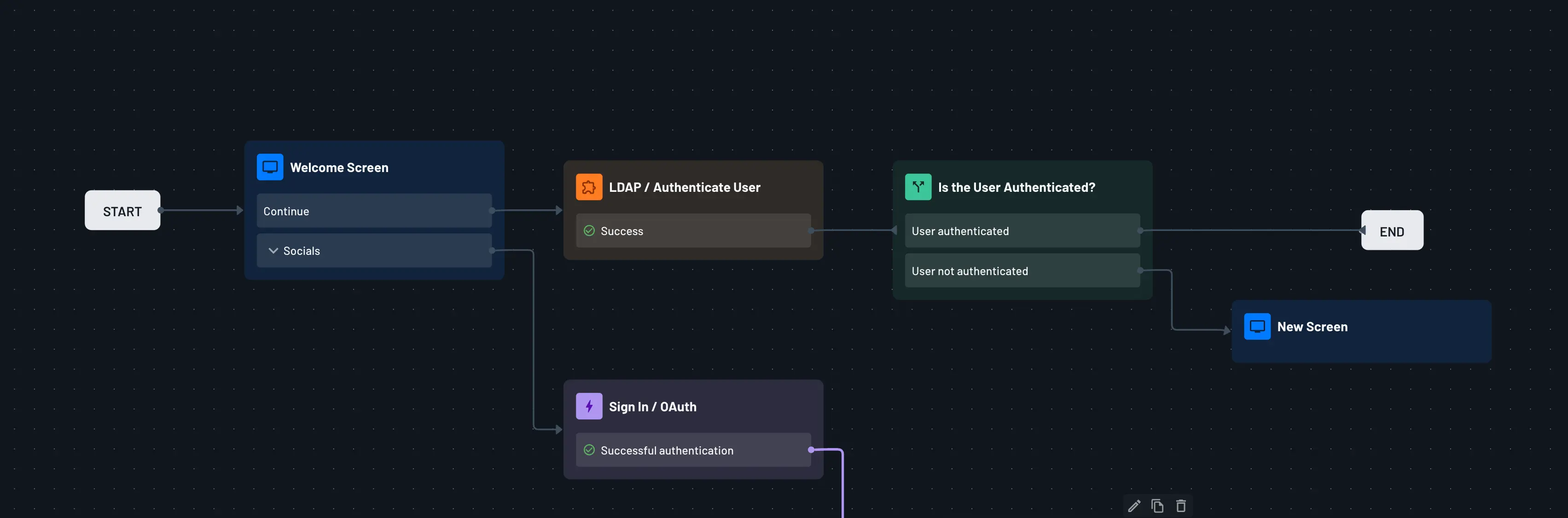

Add the LDAP / Authenticate User command in the flow. The Authenticate User command should be used whenever you need to authenticate a user against the LDAP directory.

Parameters:

• userDn (required): The Distinguished Name for the user in LDAP. Use any dynamic value by using {{value}} as a placeholder (e.g., mail={{user.mail}},dc=example,dc=com or (uid={{user.name}},dc=example,dc=com)).
• password (required): The user's password for authentication

Response:

{
  "status": "success",
  "data": {
    "authenticated": true,
    "userDn": "uid=john,ou=users,dc=example,dc=com"
  }
}

Or when authentication fails:

{
  "status": "success",
  "data": {
    "authenticated": false,
    "userDn": "uid=john,ou=users,dc=example,dc=com"
  }
}

Error Handling

The LDAP connector provides specific error codes for different failure scenarios:

• search_error: An error occurred during the search operation
• authentication_error: An error occurred during authentication
• connection_error: Unable to connect to the LDAP server
• configuration_error: Invalid or missing configuration parameters
