Backend EHR Integrations

This guide explains how to integrate Descope with Epic, Meditech, OpenEMR, and other EHR systems.

This integration allows your backend service to securely authenticate with an EHR system using a signed JWT (client assertion) instead of a client secret. This is the standard backend-only / system-level SMART on FHIR flow, designed for cases where no end-user is present.

By handling JWT construction, signing, and EHR-specific token endpoint requirements, Descope removes the complexity typically involved in connecting to EHR platforms such as Epic, Meditech, OpenEMR, and other SMART on FHIR-compliant systems.

Overview

SMART Backend Services enable backend applications to authenticate to EHR systems without user interaction. Instead of using traditional client secrets, your service generates a signed JWT assertion using a private key.

The EHR validates this assertion using your public key and issues an access token. This approach allows you to request system-level scopes like system/*.read and access FHIR resources from automated server processes, scheduled jobs, or background services.

Descope supports both directions of this flow:

Outbound Flow

Descope generates signed JWT assertions and obtains EHR-issued access tokens that your backend can use to call FHIR APIs.

Inbound Flow

Descope can accept EHR-issued JWTs or access tokens and exchange them for Descope tokens. This enables you to:

• Treat an EHR-issued token as an authenticated identity,
• Map EHR users or service accounts into Descope identities,
• Normalize and unify identity handling across multiple EHR systems.

Outbound Flow (Descope → EHR)

This flow lets your backend obtain an EHR access token to call FHIR APIs.

1. Register your backend app in the EHR.
2. Upload your Descope public key (JWKs) to the EHR.
3. Use Descope to generate a client assertion JWT.
4. Send the JWT to the EHR token endpoint with grant_type=jwt-bearer.
5. The EHR validates the assertion and returns an access token.
6. Use the access token to call FHIR endpoints.

1. Register Your Backend App in the EHR

Epic

1. Log into Epic App Orchard / Connection Hub.
2. Register a Backend Service / System App.
3. Select required scopes (for example, system/*.read).
4. Note the Client ID and Token URL.
5. Upload your Descope Public Key (JWKs).

Other Supported EHR Systems

Descope supports integration with these EHR systems out of the box:

2. Get Your Descope Public Key

Get your Descope public key from the project-level JWKs URL:

https://api.descope.com/<PROJECT_ID>/.well-known/JWKs.json

Descope automatically manages the private key used for signing. The JWKs endpoint contains the public key that EHR systems need to validate your client assertions. Upload this public key (or provide the JWKs URL) to your EHR system during app registration.

3. Generate a Client Assertion JWT

You have two options for generating the client assertion:

import { DescopeClient } from '@descope/node-sdk';

const descopeClient = DescopeClient({
  projectId: process.env.DESCOPE_PROJECT_ID!,
  managementKey: process.env.DESCOPE_MANAGEMENT_KEY!,
});

async function generateEpicClientAssertion() {
  const clientId = process.env.EPIC_CLIENT_ID!;
  const tokenUrl = process.env.EPIC_TOKEN_URL!;

  const response = await descopeClient.management.jwt.generateClientAssertionJwt(
    clientId,           // issuer
    clientId,           // subject
    [tokenUrl],         // audience array
    300,                // expiresIn (seconds)
    true,               // flattenAudience (optional)
  );

  const clientAssertionJwt = response.data.jwt;
  return clientAssertionJwt;
}

4. Exchange the Assertion for an EHR Access Token

Once you have the client assertion JWT from Descope, exchange it with the EHR:

POST <EHR_TOKEN_URL>
Content-Type: application/x-www-form-urlencoded

grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer
client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer
client_assertion=<CLIENT_ASSERTION_JWT>

Example Epic response:

{
  "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9...",
  "token_type": "Bearer",
  "expires_in": 300
}

5. Use the Access Token to Call FHIR

Use the returned EHR access token in the Authorization header:

GET https://<epic-host>/api/FHIR/R4/Patient/123
Authorization: Bearer <EHR_ACCESS_TOKEN>
Accept: application/fhir+json

You can now perform FHIR operations allowed by the granted scopes (for example, system/*.read).

Example: End-to-End Outbound Flow

import axios from 'axios';
import { DescopeClient } from '@descope/node-sdk';

const descopeClient = DescopeClient({ projectId: process.env.DESCOPE_PROJECT_ID! });

async function getEhrAccessToken() {
  const clientId = process.env.EHR_CLIENT_ID!;
  const tokenUrl = process.env.EHR_TOKEN_URL!;
  const fhirBase = process.env.EHR_FHIR_BASE!;

  // 1. Generate client assertion with Descope
  const assertionResp = await descopeClient.management.jwt.generateClientAssertionJwt(
    clientId,
    clientId,
    [tokenUrl],
    300,
    true,
  );

  const clientAssertionJwt = assertionResp.data.jwt;

  // 2. Exchange assertion for EHR access token
  const params = new URLSearchParams({
    grant_type: 'urn:ietf:params:oauth:grant-type:jwt-bearer',
    client_assertion_type: 'urn:ietf:params:oauth:client-assertion-type:jwt-bearer',
    client_assertion: clientAssertionJwt,
  });

  const tokenResponse = await axios.post(tokenUrl, params.toString(), {
    headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
  });

  const ehrAccessToken = tokenResponse.data.access_token as string;

  // 3. Use EHR access token to call FHIR
  const patientResp = await axios.get(`${fhirBase}/Patient/123`, {
    headers: {
      Authorization: `Bearer ${ehrAccessToken}`,
      Accept: 'application/fhir+json',
    },
  });

  return patientResp.data;
}

getEhrAccessToken().then(console.log).catch(console.error);

Multi-EHR / Multi-Tenant Patterns

For Descope projects that involve multiple tenants integrating with different EHR vendors:

• Maintain a configuration map per tenant or per EHR. You can use tenant custom attributes to store the configuration, including:
  • EHR type (Epic, Meditech, OpenEMR, etc.)
  • Client ID
  • Token URL
  • FHIR base URL

Example config shape:

{
  "tenantA": {
    "ehrType": "epic",
    "clientId": "EPIC_CLIENT_ID",
    "tokenUrl": "https://epic.example.com/oauth2/token",
    "fhirBase": "https://epic.example.com/api/FHIR/R4"
  },
  "tenantB": {
    "ehrType": "openemr",
    "clientId": "OPENEMR_CLIENT_ID",
    "tokenUrl": "https://openemr.example.com/oauth2/default/token",
    "fhirBase": "https://openemr.example.com/apis/default/fhir/R4"
  }
}

Your backend can then look up the tenant attribute based on the user who is logged in, and then use the respective values to generate a client assertion JWT, as described above.

Inbound Flow (External JWT → Descope Token)

In the inbound flow, you receive a token from the EHR (or another SMART-compliant identity provider) and want to:

• Accept it as user identity.
• Map the subject to a Descope user.
• Issue Descope tokens (session, access, refresh).
• Normalize identity across multiple EHRs.

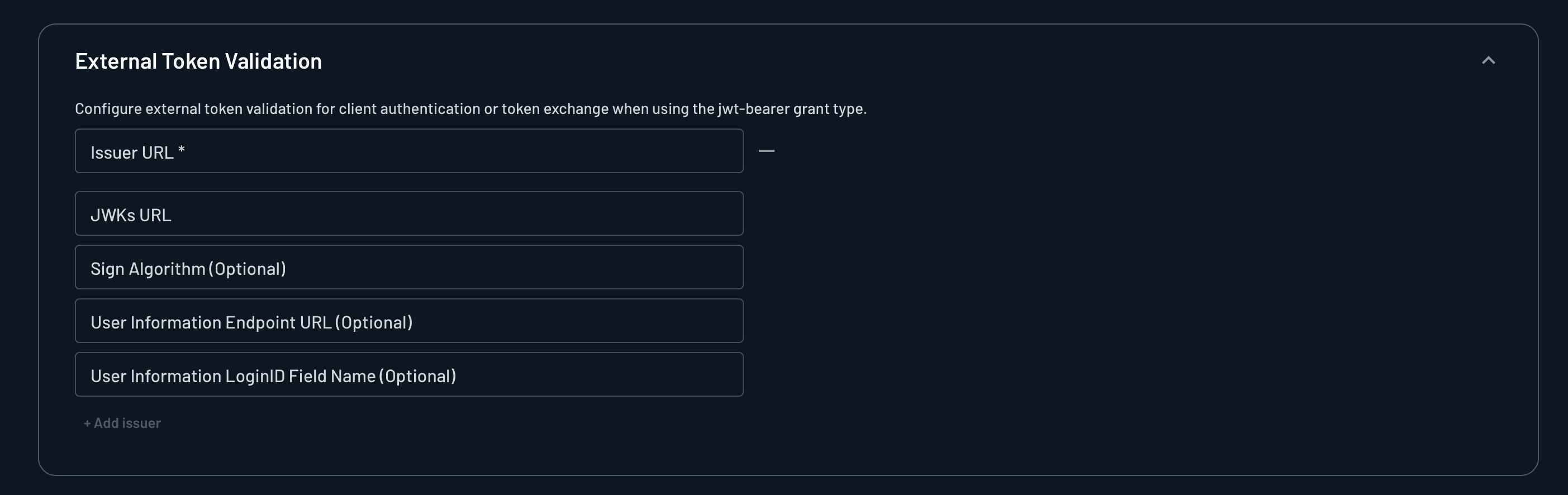

1. Configure External Token Validation

You can configure external token validation under the External Token Validation section of your Inbound App settings. If you do not already have an inbound application, you must create one first.

Issuer URL

Enter the issuer URL for your EHR system. Some examples are:

• Epic: https://fhir.epic.com/interconnect-fhir-oauth/oauth2
• Meditech: https://<your-meditech-host>/oauth2
• OpenEMR: https://<your-openemr-host>/oauth2/default

JWKs URL

You can manually override the JWKs URL if your EHR uses custom endpoints or if automatic discovery is not available.

Signing Algorithm

Select the signing algorithm used by your EHR system. The currently supported algorithms are:

• RS256
• ES384
• ES256
• ES512

User Information Endpoint URL

Optionally configure a /me or userinfo endpoint to pull additional user metadata after validating the JWT.

User Information LoginID Field Name

Choose which JWT claim identifies the user in Descope. Some examples are:

• sub
• fhirUser
• Any nested claim (for example, claims.user.id)
• A field from the /me response

2. Exchange the External Token with Descope

To exchange the EHR-issued token for a Descope token:

POST https://api.descope.com/oauth2/v1/apps/token
Content-Type: application/x-www-form-urlencoded

grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer
assertion=<EHR_ACCESS_TOKEN>
client_id=<DESCOPE_INBOUND_APP_CLIENT_ID>

Descope validates the external token and returns:

{
  "access_token": "<DESCOPE_ACCESS_TOKEN>",
  "expires_in": 3600,
  "token_type": "Bearer"
}

You can now use access_token as a standard Descope token in your APIs and frontends.

Troubleshooting

These are some common errors you might encounter when integrating with EHR systems:

Testing & Sandbox Guidance

For development and testing:

• Use EHR sandbox environments (Epic Sandbox, Medplum, etc.).
• Start with read-only scopes such as system/*.read.
• Create a simple health check in your backend that:
  1. Calls Descope to generate a client assertion.
  2. Exchanges it with the EHR for an access token.
  3. Calls a lightweight endpoint (for example, /metadata or /Patient).
  4. Returns success/failure and any relevant error messages.

This gives you a single endpoint to verify that Descope configuration and EHR configuration are all working end-to-end.
