Creating Relations

After you've defined your schema and implemented it in Descope, you can start creating relations between resources and targets. Relations are the actual data that represents who has access to what resources in your authorization model.

Prerequisites

Before creating relations, make sure you have:

1. Defined your FGA schema with relation definitions
2. Implemented your schema
3. Installed and initialized the Descope Management SDK (see setup below)

Data Types

When working with relations, you'll use the following data types:

FGARelation

The FGARelation type defines a relation between a resource and a target:

type FGARelation = {
  resource: string;        // The resource identifier (e.g., "engineering-team", "project-plan.pdf")
  resourceType?: string;   // The resource type/namespace (e.g., "Group", "File", "Folder")
  relation: string;        // The relation name from your schema (e.g., "member", "owner", "viewer")
  target: string;          // The target identifier, usually a user ID (e.g., "U2abc123def456")
  targetType?: string;    // The target type/namespace (e.g., "user")
};

CheckResponseRelation

When checking relations (covered in Checking Relations), the response includes:

type CheckResponseRelation = {
  allowed: boolean;        // Whether the relation is allowed
  tuple: FGARelation;     // The relation that was checked
};

Creating Relations

You can create relations either through the Descope Console or programmatically using the SDKs.

Using the Console

You can create relations directly in the Descope Console:

1. Navigate to Authorization > FGA > Relations
2. Click Create Relation
3. Fill in the relation details:
   • Resource Type: The type of resource (e.g., Group, File, Folder)
   • Resource Name: The identifier for the specific resource (e.g., engineering-team, project-plan.pdf)
   • Relation: The relation name from your schema (e.g., member, owner, viewer)
   • Target Type: The type of target (e.g., user)
   • Target: The target identifier, usually a user ID (e.g., U2abc123def456)

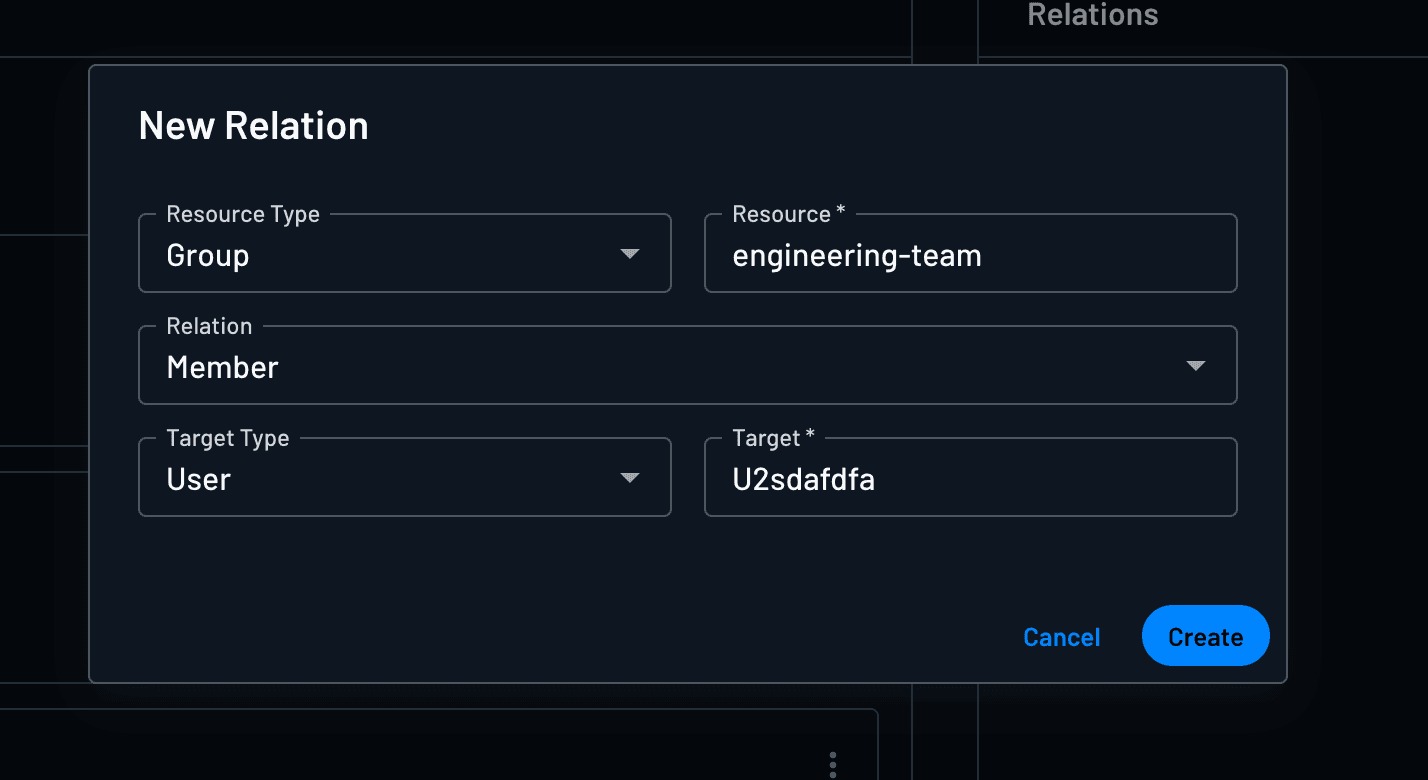

Here's an example of creating a relation for a user as a member of a group:

Using the SDK

Use createRelations to create one or more relations programmatically. This function accepts an array of FGARelation objects and creates them all in a single operation.

Install SDK

npm i --save @descope/node-sdk

Initialize Management SDK

Initialize the Descope Management SDK with your project ID and management key. The management key must have FGA read/write permissions.

import DescopeClient from '@descope/node-sdk';

const managementKey = "xxxx"

try {
    // Optional: configure baseUrl for custom domain
    // baseUrl="https://auth.company.com"
    const descopeClient = DescopeClient({
        projectId: '__ProjectID__',
        managementKey: managementKey
    });
} catch (error) {
    // handle the error
    console.log("failed to initialize: " + error)
}

Create Relations Programmatically

// Example: Add a user as a member of a group
const relations = [
  {
    resource: 'engineering-team',
    resourceType: 'Group',
    relation: 'member',
    target: 'U2abc123def456',
    targetType: 'user',
  },
];

await descopeClient.management.fga.createRelations(relations);

Deleting Relations

Delete Specific Relations

Use deleteRelations to remove specific relations. This function accepts an array of FGARelation objects and deletes all matching relations.

// Example: Remove a user from a group
const relations = [
  {
    resource: 'engineering-team',
    resourceType: 'Group',
    relation: 'member',
    target: 'U2abc123def456',
    targetType: 'user',
  },
];

await descopeClient.management.fga.deleteRelations(relations);

Delete All Relations

Use deleteAllRelations to delete all relations in your project. Warning: This is a destructive operation that cannot be undone.

// Delete all relations in the project
await descopeClient.management.fga.deleteAllRelations();

Resource Details

Resource details allow you to store additional metadata about resources that can be used for filtering, display, or other purposes. This is optional metadata that doesn't affect authorization decisions but can be useful for building user interfaces or generating reports.

Load Resource Details

Use loadResourcesDetails to retrieve metadata for one or more resources.

const resourceIdentifiers = [
  { resource: 'doc-1', resourceType: 'doc' },
  { resource: 'doc-2', resourceType: 'doc' }
];

const resourceDetails = await descopeClient.management.fga.loadResourcesDetails(resourceIdentifiers);

Save Resource Details

Use saveResourcesDetails to store or update metadata for resources. This metadata can include display names, descriptions, and custom metadata fields.

const resourcesDetails = [
  {
    resource: 'doc-1',
    resourceType: 'doc',
    displayName: 'Document 1',
    description: 'First document',
    metadata: { category: 'important' }
  },
  {
    resource: 'doc-2',
    resourceType: 'doc',
    displayName: 'Document 2',
    description: 'Second document',
    metadata: { category: 'normal' }
  }
];

await descopeClient.management.fga.saveResourcesDetails(resourcesDetails);

Next Steps

After creating relations, you can:

• Check relations to verify access permissions
• Use the relations in your application logic to enforce authorization
